1500V Panel-Mount Solar Connector for 2.5, 4 & 6 mm² PV Cable – UH-PC-PM02

Model UH-PC-PM02

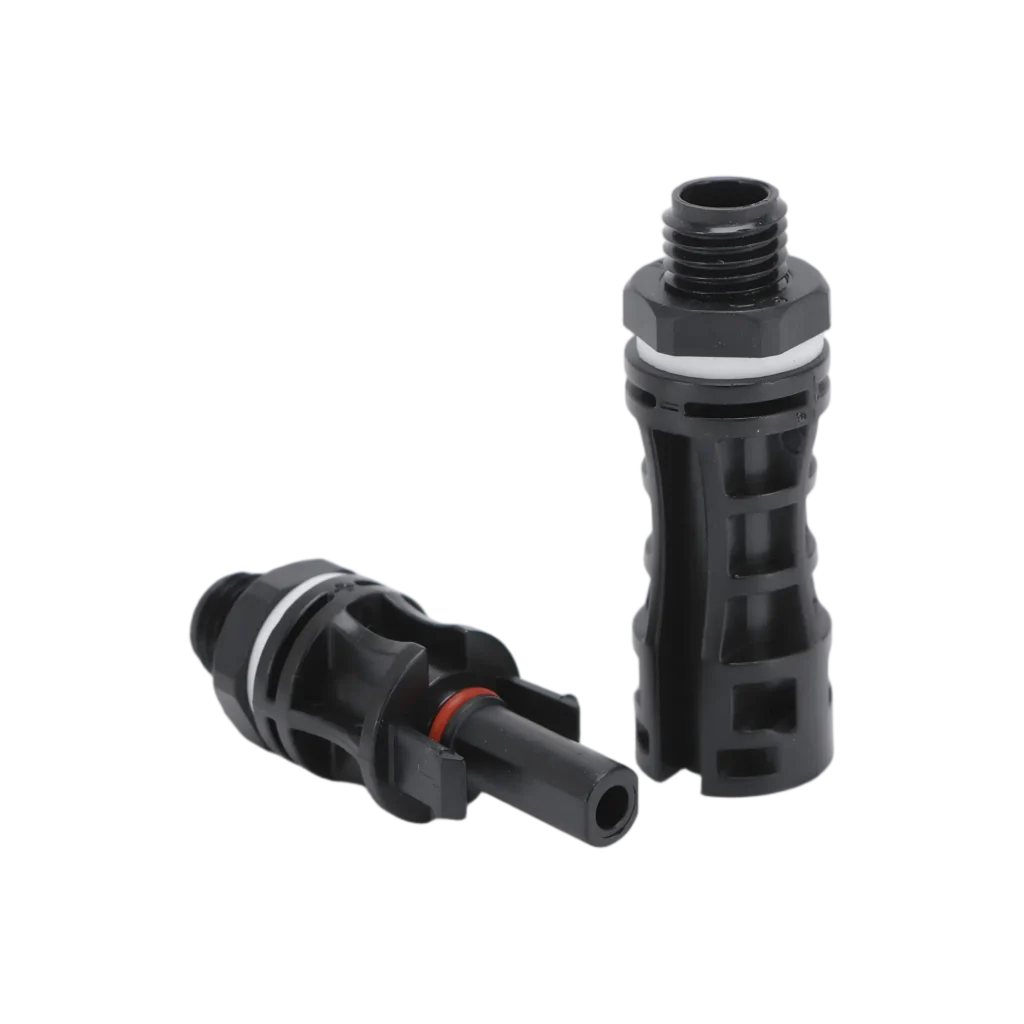

UH-PC-PM02 is a 1500V DC panel-mount solar connector designed to create a fixed photovoltaic connection interface through equipment panels and electrical enclosures. It is available in 30A / 2.5 mm², 45A / 4 mm² and 50A / 6 mm² configurations, with crimp contacts and IP67 protection when correctly installed and mated.

Threaded Panel Mount
1500V DC Rating
30A / 45A / 50A

Rated Voltage 1500V DC

Rated Current 30A ~ 50A

Cable Size 2.5 ~ 6 mm² / 14 ~ 10 AWG

Mounting Type Threaded Panel Mount

Degree of Protection IP67, correctly installed and mated

Ambient Temperature -40°C to +85°C

Get A Quote View specifications

Match the 30A / 45A / 50A version to the specified 2.5 / 4 / 6 mm² conductor and complete the panel mounting and connector mating before energizing.

UH-PC-PM02 is a 1500V DC panel-mount solar connector designed to provide a fixed photovoltaic connection point through equipment panels and electrical enclosures. Three conductor-specific configurations are available: 30A for 2.5 mm² PV cable, 45A for 4 mm² cable and 50A for 6 mm² cable.

The threaded panel-mount body secures the connector to the equipment interface while the detachable mating side allows external PV wiring to connect to the installed equipment. Tin-plated copper contacts are supplied as standard, with silver-plated copper contacts available on request. The PC insulated housing provides IP67 protection when correctly installed and fully mated.

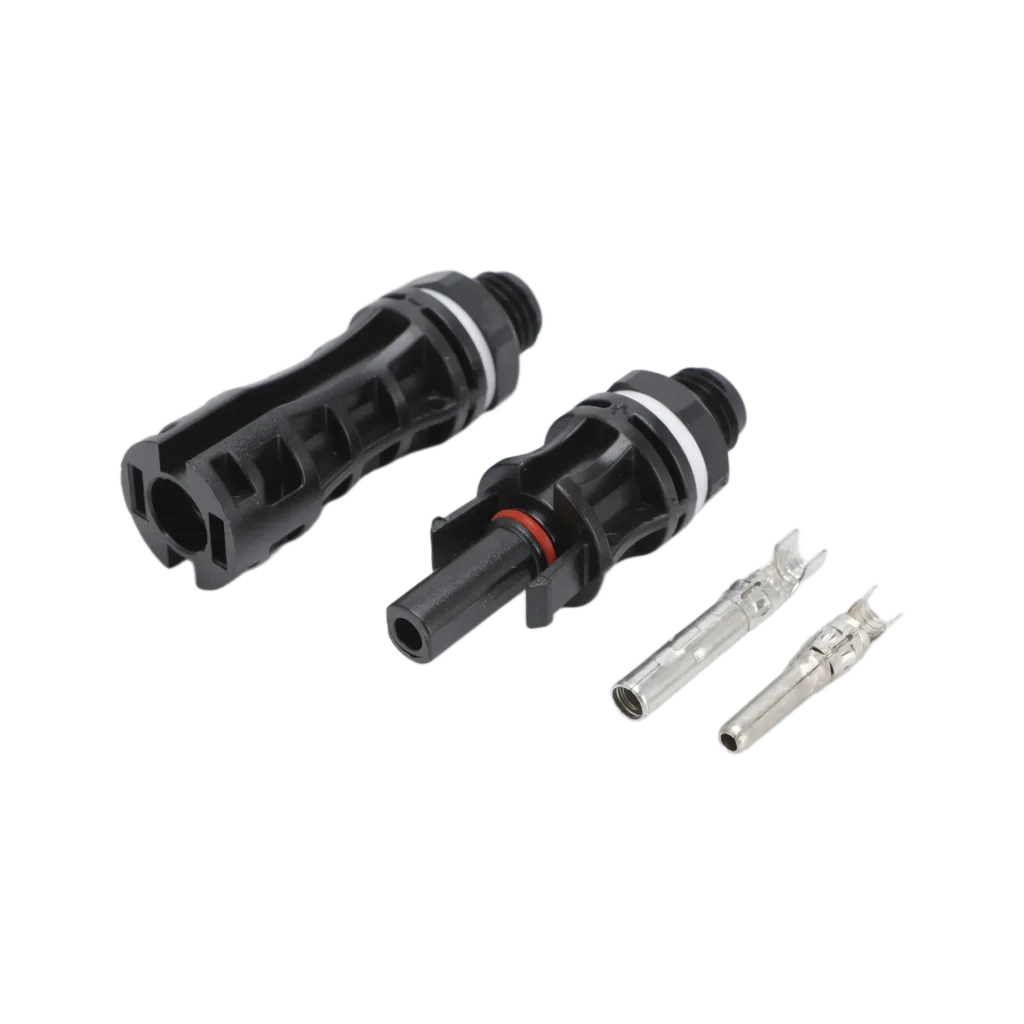

UH-PC-PM02 solar connector assembly components

Threaded Panel Mount

1500V DC Rating

30A / 45A / 50A

Threaded Panel-Mount Interface

The threaded connector body is designed to be secured through a suitable equipment panel or enclosure, creating a fixed photovoltaic connection interface.

1500V DC Platform

UH-PC-PM02 provides a panel-mounted connection platform for photovoltaic equipment designed around a 1500V DC connector rating.

Three Conductor Configurations

Available versions pair 30A with 2.5 mm², 45A with 4 mm² and 50A with 6 mm² photovoltaic conductors.

Crimp Contact Termination

Crimp contacts provide the conductor termination on the equipment side and should be installed using tooling matched to the selected conductor and contact size.

IP67 Mated Protection

Correct panel installation and complete mating of the connector interface provide IP67 environmental protection for applicable photovoltaic equipment.

Two Contact Finishes

Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.

Electrical Characteristics

Parameter	Value
Rated Voltage	1500V DC
Rated Current	30A ~ 50A
Cable Size	2.5 ~ 6 mm² / 14 ~ 10 AWG
30A Configuration	2.5 mm² PV Conductor
45A Configuration	4 mm² PV Conductor
50A Configuration	6 mm² PV Conductor
Configuration	Inline Connector
Termination	Crimp Contact

Cable & Contact

Parameter	Value
Termination Method	Crimp
Contact Material	Tin-Plated Copper
Optional Contact Finish	Silver-Plated
Contact Connection	Crimp

Mounting & Mechanical

Parameter	Value
Mounting Type	Threaded Panel Mount
Threaded Section Diameter Shown	11.89 mm
Maximum Housing Width Shown	20.02 mm
Housing Length – Version A	55.9 mm
Housing Length – Version B	58.9 mm
Insulation Material	PC
Housing Color	Black

Environmental Characteristics

Parameter	Value
Degree of Protection	IP67, correctly installed and mated
Ambient Temperature	-40°C to +85°C
Installation Environment	Photovoltaic Equipment / Outdoor Enclosure Interface

Selection

Choose the Correct UH-PC-PM02 Configuration

Select the UH-PC-PM02 configuration according to the conductor cross-section and connector current rating required by the photovoltaic equipment. All versions use the same 1500V panel-mount product platform, while the crimp contact geometry changes with the selected conductor and current configuration.

Rated Current	PV Cable Size	Approx. AWG	Rated Voltage	Standard Contact	Optional Contact
30A	2.5 mm²	14 AWG	1500V DC	Tin-Plated Copper	Silver-Plated Copper
45A	4 mm²	12 AWG	1500V DC	Tin-Plated Copper	Silver-Plated Copper
50A	6 mm²	10 AWG	1500V DC	Tin-Plated Copper	Silver-Plated Copper

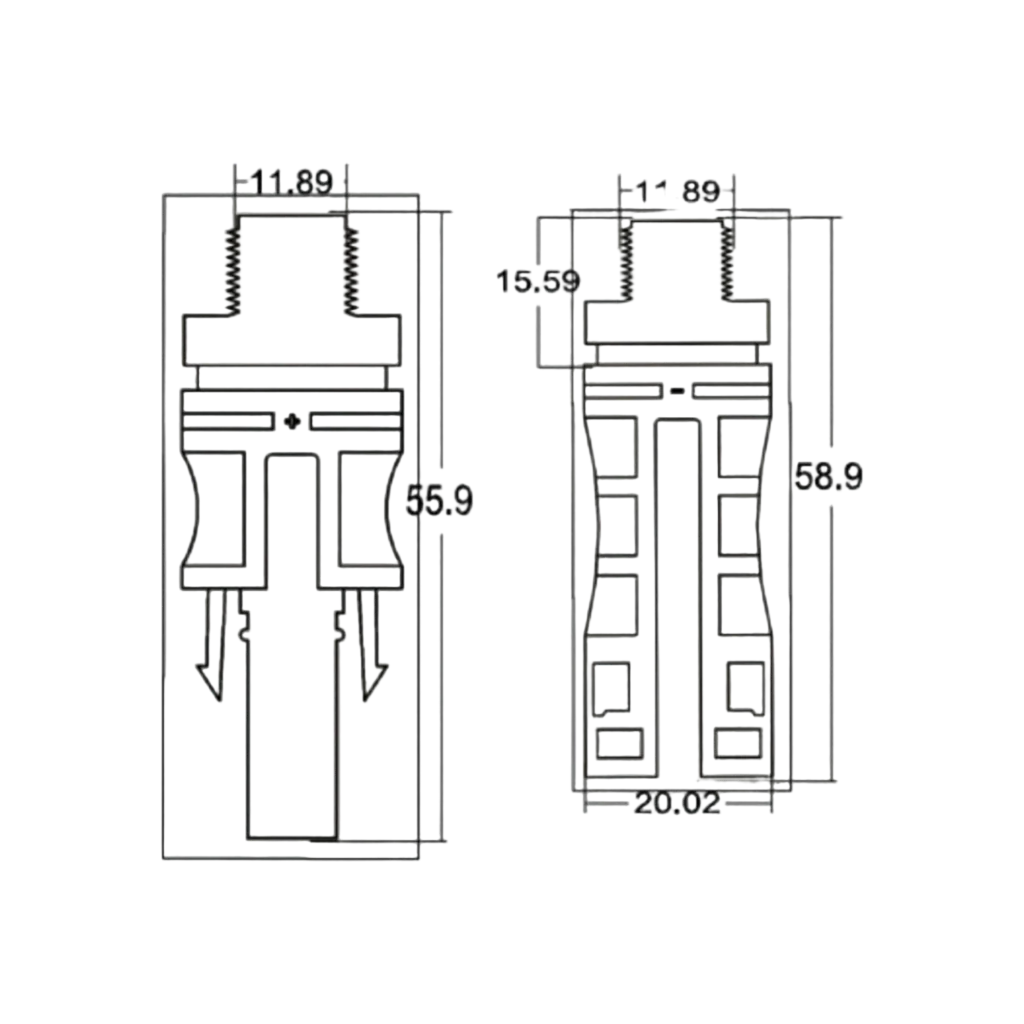

UH-PC-PM02 panel-mount solar connector dimensions in mm

Dimension	Value
Housing Length – Side A	55.9 mm
Housing Length – Side B	58.9 mm
Threaded Section Diameter Shown	11.89 mm
Body Width Shown	15.59 mm
Maximum Housing Width	20.02 mm
Units	mm

Applications

Where This Product Is Used

Solar PV Systems

Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.

UH-PC-PM02 is intended for photovoltaic equipment requiring a fixed 1500V DC connector interface through an enclosure wall or equipment panel. Typical applications include PV combiner boxes, inverter housings, junction enclosures and other solar electrical equipment where external PV cabling must connect to internally mounted electrical components.

Installation

Installation Guidance

1. Select the UH-PC-PM02 configuration according to the installed photovoltaic conductor: 2.5 mm² / 30A, 4 mm² / 45A or 6 mm² / 50A.

2. Prepare the equipment panel according to the UH-PC-PM02 dimensional drawing and the mechanical requirements of the enclosure. Do not define the panel opening from the nominal thread diameter alone.

3. Insert the threaded connector body through the prepared panel opening and secure the panel-mount structure using the specified mounting components.

4. Prepare the photovoltaic conductor without damaging the conductor strands or insulation required for the connection.

5. Insert the conductor into the matching crimp contact and complete the termination using tooling suitable for the selected conductor and contact size.

6. Install the terminated contact into the corresponding UH-PC-PM02 housing until it is fully seated and retained.

7. Mate the external photovoltaic connector completely and verify that the mating and locking interfaces are fully engaged.

8. Check panel mounting, polarity, conductor retention and complete mating before energizing the photovoltaic circuit. Do not connect or disconnect the connector while the circuit is under electrical load.

1000V Panel-Mount Solar Connector – UH-PC-PM01

UH-PC-PM01 is a 30A, 1000V DC panel-mount solar connector designed to provide a detachable photovoltaic connection through equipment panels and enclosures. It supports 2.5, 4 and 6 mm² conductors, with crimp contacts, threaded panel mounting and IP67 protection when correctly installed and mated.

View Product

1500V High-Current Solar Connector up to 60A – UH-PC-MC04

UH-PC-MC04 is a high-current 1500V DC solar connector covering 30A / 2.5 mm², 45A / 4 mm², 50A / 6 mm² and 60A / 10–16 mm² PV cable configurations. Its larger connector platform combines field crimp termination, PC insulation and IP67 protection when correctly assembled and mated.

View Product

PV Connector Wrench for Solar Connector Assembly – UH-PT-WR01

UH-PT-WR01 is a manual PV connector wrench platform available in 1000V flat-head, 1500V flat-head and 1000V round-head configurations. Each variant is designed for assembly and disassembly of compatible solar connector housings and cable-gland interfaces during PV installation and maintenance.

View Product

Important Notes

Match the 30A / 45A / 50A version to the specified 2.5 / 4 / 6 mm² conductor and complete the panel mounting and connector mating before energizing.

FAQ

Frequently Asked Questions

What is the UH-PC-PM02 used for?

UH-PC-PM02 provides a fixed 1500V DC photovoltaic connection interface through an equipment panel or electrical enclosure, allowing external PV wiring to connect to equipment such as combiner boxes, inverter housings and other solar electrical assemblies.

Which cable sizes and current ratings are available?

UH-PC-PM02 is available in 30A / 2.5 mm², 45A / 4 mm² and 50A / 6 mm² configurations.

Is UH-PC-PM02 a cable-to-cable solar connector?

No. UH-PC-PM02 is a panel-mount connector platform designed to be secured through an equipment panel or enclosure. For a cable-to-cable 1500V connector, see UH-PC-MC04 – 1500V 60A Solar Connector.

What is the difference between UH-PC-PM01 and UH-PC-PM02?

UH-PC-PM01 – 1000V Panel-Mount Solar Connector is the 1000V panel-mount platform. UH-PC-PM02 is a separate 1500V panel-mount platform with 30A, 45A and 50A conductor-specific configurations.

What panel opening should be used?

Panel dimensions should be prepared from the UH-PC-PM02 dimensional drawing and the requirements of the selected mounting structure. The supplier drawing shows an approximately 11.89 mm threaded section but does not specify a recommended panel cutout or tolerance.

Are silver-plated contacts available?

Yes. Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.

Is UH-PC-PM02 suitable for outdoor photovoltaic equipment?

The connector is rated IP67 when correctly installed and fully mated. The complete enclosure and panel interface must also provide the environmental protection required by the application.
