Solar Connector

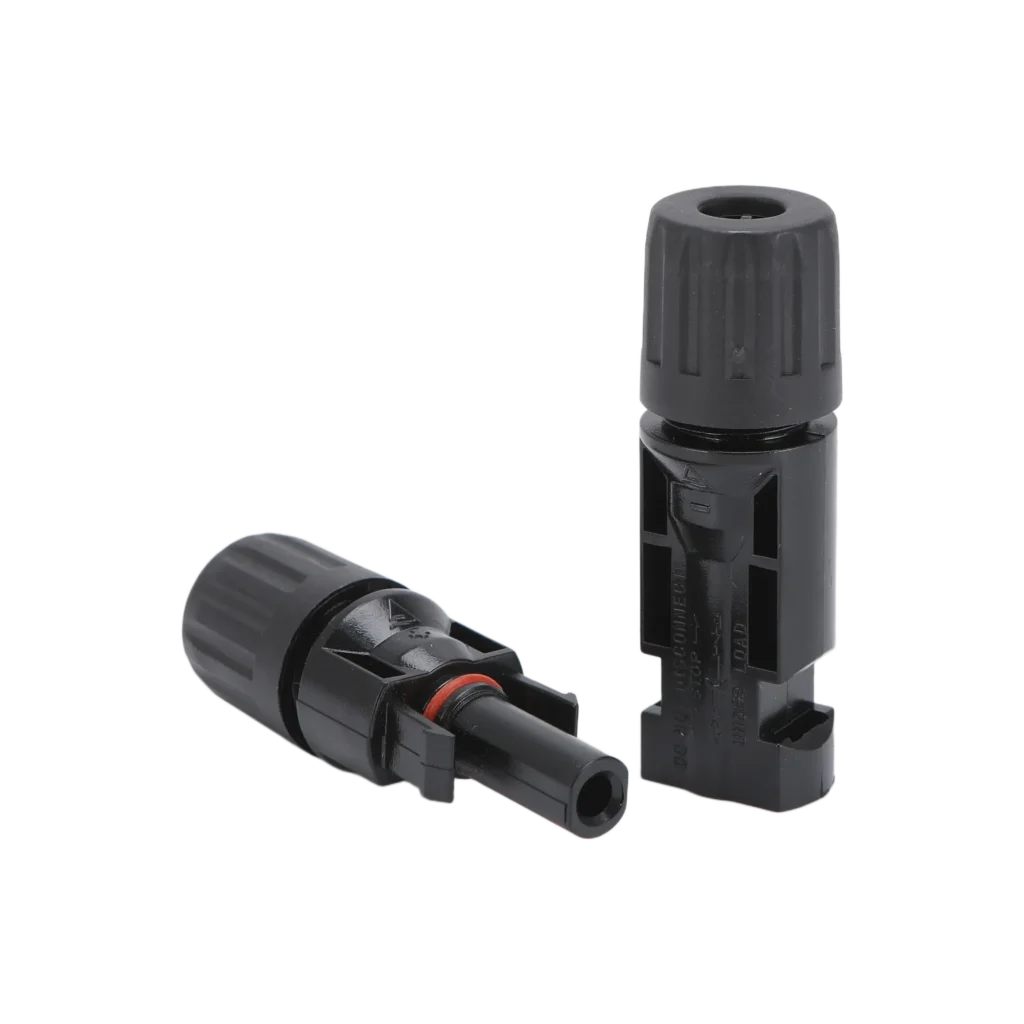

1000V Solar Connector for 2.5 – 6 mm² PV Cable – UH-PC-MC01

Model UH-PC-MC01

UH-PC-MC01 is a 1000V DC solar connector for field-assembled PV cable connections, available in 30A / 2.5 mm², 45A / 4 mm² and 50A / 6 mm² configurations. It uses crimp contacts, PC insulation and IP67 protection when correctly assembled and mated for outdoor photovoltaic wiring.

1000V DC Rating
30A / 45A / 50A
IP67 Mated Protection

Rated Voltage 1000V DC

Rated Current 30A ~ 50A

Cable Size 2.5 ~ 6 mm² / 14 ~ 10 AWG

Degree of Protection IP67, correctly assembled and mated

Ambient Temperature -40°C to +85°C

Connection Method Crimp Contact + Locking Housing

Get A Quote View specifications

Rated current applies to the corresponding UH-PC-MC01 connector configuration and does not replace cable ampacity or PV system design calculations. IP67 protection applies after correct assembly and complete mating of…

UH-PC-MC01 is a 1000V DC solar connector designed for field-assembled cable-to-cable connections in photovoltaic systems. Three matched configurations are available: 30A for 2.5 mm² PV cable, 45A for 4 mm² cable, and 50A for 6 mm² cable.

The connector combines crimp termination, PC insulation and a locking housing for outdoor PV wiring, with IP67 protection when correctly assembled and mated. Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request for projects requiring an alternative contact finish.

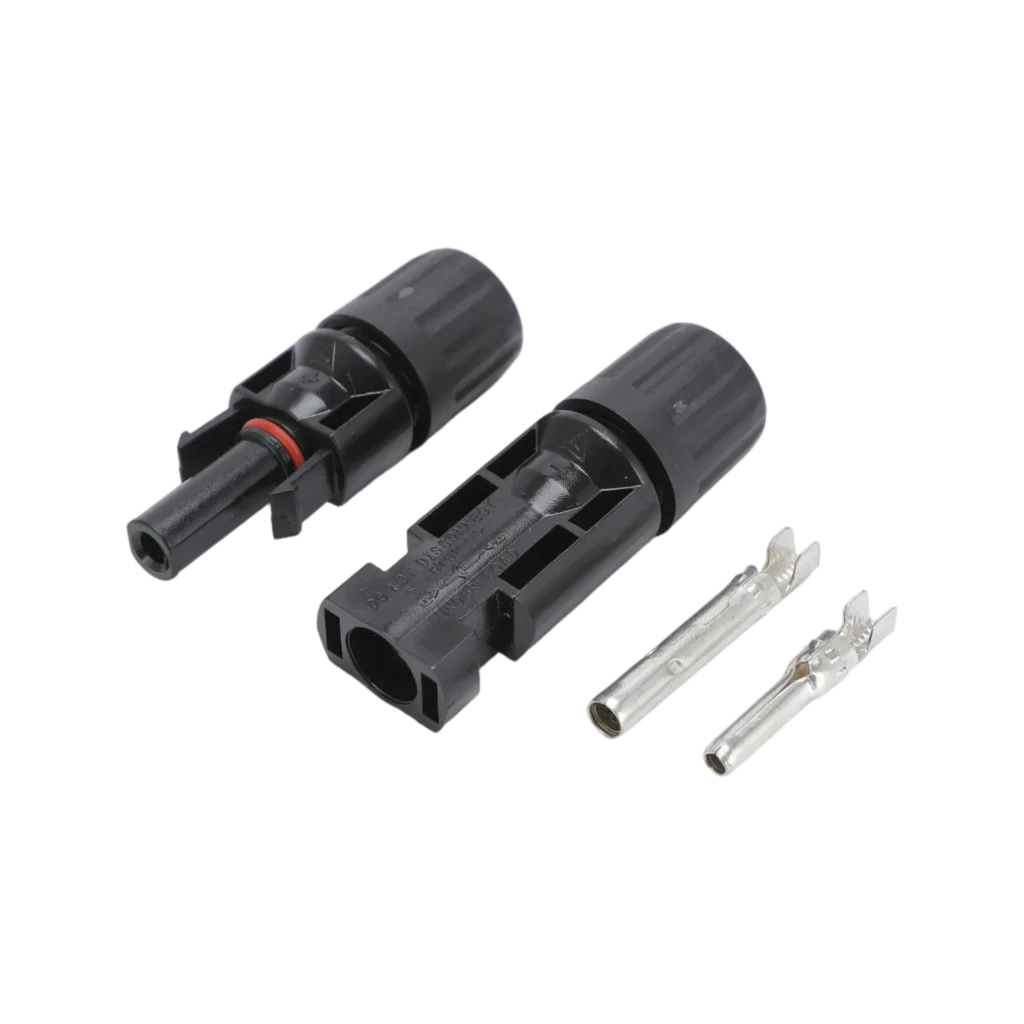

UH-PC-MC01 solar connector assembly components

1000V DC Rating

30A / 45A / 50A

IP67 Mated Protection

2.5 / 4 / 6 mm²

Crimp Connection

Tin-Plated Contacts

Three Current Configurations

Choose a matched connector configuration for the installed PV conductor: 30A with 2.5 mm² cable, 45A with 4 mm² cable, or 50A with 6 mm² cable.

Crimp Contact Termination

Crimp termination provides a secure conductor-to-contact connection when the correct contact size, crimping die and installation procedure are used.

IP67 Mated Protection

The connector provides IP67 protection after correct cable assembly and mating, supporting outdoor photovoltaic cable connections.

PC Insulated Housing

The PC housing provides electrical insulation together with the weather and UV resistance required for typical outdoor PV installation environments.

Copper Contact Options

Tin-plated copper contacts are supplied as standard. Silver-plated copper contacts are available on request for projects requiring an alternative contact finish.

Locking Connector Design

The mating connector housings use a locking structure to help maintain a secure connection during normal photovoltaic system operation and servicing.

Electrical Characteristics

Parameter	Value
Rated Voltage	1000V DC
Rated Current	30A ~ 50A
Configuration	Inline connector
Cable Size	2.5 ~ 6 mm² / 14 ~ 10 AWG
30A Configuration	2.5 mm² PV Cable
45A Configuration	4 mm² PV Cable
50A Configuration	6 mm² PV Cable

Cable & Contact

Parameter	Value
Termination Method	Crimp
Contact Material	Tin-Plated Copper
Optional Contact Finish	Silver-Plated

Environmental & Mechanical

Parameter	Value
Degree of Protection	IP67, correctly assembled and mated
Ambient Temperature	-40°C to +85°C
Insulation Material	PC
Housing Color	Black
Connection Method	Crimp Contact + Locking Housing

Selection

Choose the Correct Solar Connector Configuration

Select UH-PC-MC01 according to both the PV conductor cross-section and the corresponding connector current rating. The current ratings below apply to the connector configuration and should not be used as a substitute for the cable ampacity calculation of the complete PV circuit.

Rated Current	PV Cable Size	Approx. AWG	Rated Voltage	Standard Contact	Optional Contact
30A	2.5 mm²	14 AWG	1000V DC	Tin-Plated Copper	Silver-Plated Copper
45A	4 mm²	12 AWG	1000V DC	Tin-Plated Copper	Silver-Plated Copper
50A	6 mm²	10 AWG	1000V DC	Tin-Plated Copper	Silver-Plated Copper

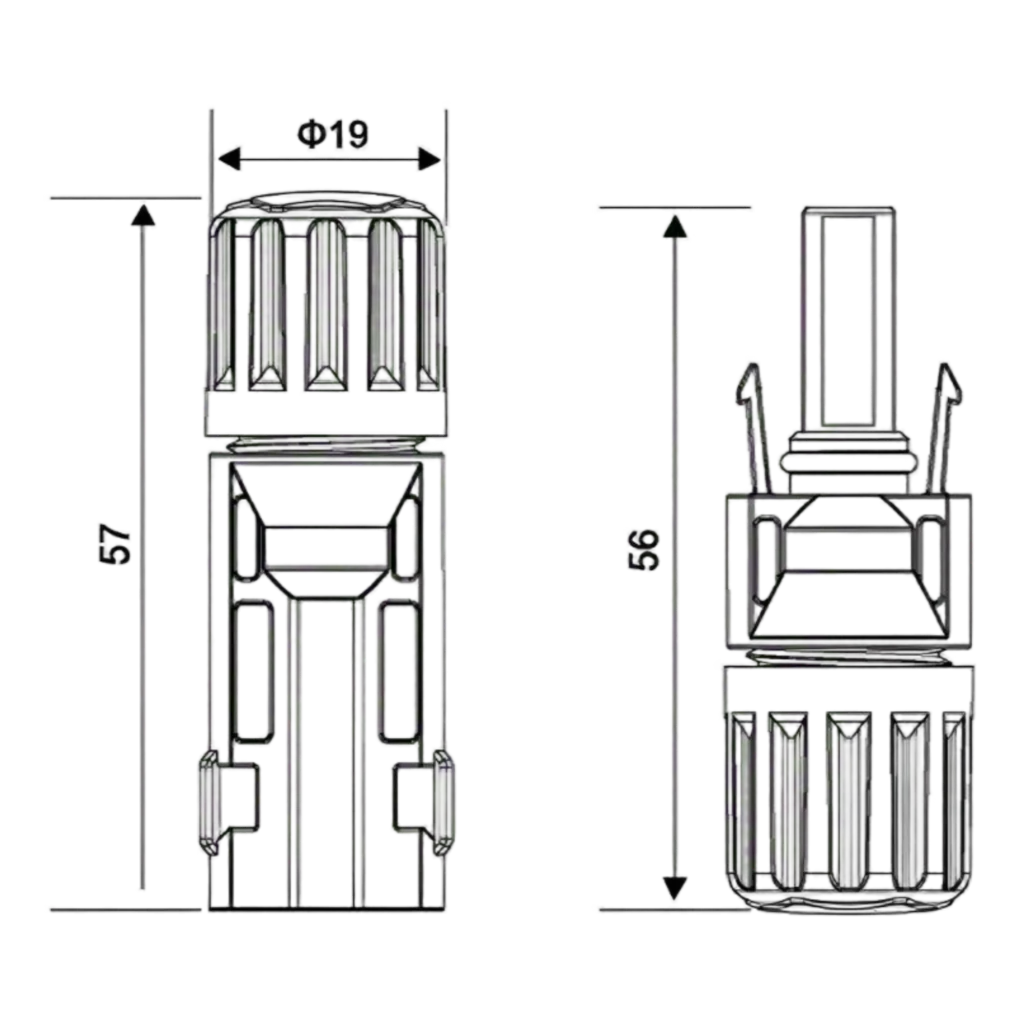

UH-PC-MC01 solar connector dimensions in mm

Dimension	Value
Connector Body Diameter	Ø19 mm
Mating Housing Lengths	57 mm / 65 mm
Units	mm

Applications

Where This Product Is Used

Commercial Buildings

Protection, switching, distribution and enclosure components for commercial and light-industrial electrical installations.

Residential Electrical

Protection, switching and backup-power components for residential distribution boards and low-voltage electrical systems.

Solar PV Systems

Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.

UH-PC-MC01 is intended for DC cable-to-cable connections in photovoltaic module strings, extension leads and solar array wiring. The available conductor configurations support residential, commercial and utility-scale PV installations where the circuit voltage, cable size and connector current rating are matched to the system design.

Installation

Installation Guidance

1. Select the connector configuration that matches the PV conductor size: 2.5 mm² for the 30A version, 4 mm² for the 45A version, or 6 mm² for the 50A version.

2. Prepare the PV cable without damaging or cutting conductor strands. Use the stripping length required by the selected crimp contact and installation tooling.

3. Insert the conductor into the crimp contact and complete the crimp using the correctly sized crimping die.

4. Insert the terminated contact into the connector housing until it reaches the locking position.

5. Tighten the cable sealing section so that the connector seal correctly grips the PV cable jacket.

6. Mate the connector halves fully and verify that the locking mechanism has engaged.

7. Perform a visual and mechanical check before energizing the circuit. Confirm polarity, cable retention and complete mating.

PV Connector Wrench for Solar Connector Assembly – UH-PT-WR01

UH-PT-WR01 is a manual PV connector wrench platform available in 1000V flat-head, 1500V flat-head and 1000V round-head configurations. Each variant is designed for assembly and disassembly of compatible solar connector housings and cable-gland interfaces during PV installation and maintenance.

View Product

Important Notes

Rated current applies to the corresponding UH-PC-MC01 connector configuration and does not replace cable ampacity or PV system design calculations.

IP67 protection applies after correct assembly and complete mating of matched connector components.

Use matched UHCCY connector halves from the same connector family. Similar external geometry does not guarantee safe intermateability with connectors from other manufacturers.

Tin-plated copper contacts are supplied as standard. Silver-plated copper contacts are available on request.

Do not connect or disconnect the connector under electrical load.

Certification documents depend on the selected production configuration and destination-market requirements. Contact UHCCY for documentation applicable to your project.

FAQ

Frequently Asked Questions

What cable sizes are available for the UH-PC-MC01 solar connector?

UH-PC-MC01 is available for 2.5 mm², 4 mm² and 6 mm² PV conductors. The corresponding connector configurations are rated at 30A, 45A and 50A respectively.

Which current rating should I choose?

Select the connector according to the installed conductor and PV circuit design: 30A for 2.5 mm², 45A for 4 mm², or 50A for 6 mm². Connector current rating should be considered together with cable ampacity, ambient temperature and the electrical design of the complete PV circuit.

Are silver-plated contacts available?

Yes. Tin-plated copper contacts are the standard UH-PC-MC01 configuration, while silver-plated copper contacts are available on request.

Is the UH-PC-MC01 waterproof?

The connector is rated IP67 when correctly assembled and fully mated. Proper cable preparation, sealing and complete mating are required to maintain the intended environmental protection.

Can UH-PC-MC01 be connected to a similar connector from another manufacturer?

Similar appearance or mating geometry does not by itself confirm electrical, mechanical or safety compatibility. For new installations, UHCCY recommends using matched connector components from the same connector family.

What tools are required for installation?

Installation requires cable preparation tools, a crimping tool and the appropriate connector assembly tools for the selected conductor size. UHCCY PV connector crimping tools and wrenches can be supplied with the connector system.
