Select the wrench according to the connector's physical housing and cable-gland profile. The 1000V or 1500V designation identifies the intended connector family class and should not be used as the only compatibility criterion.
PV Connector Tools

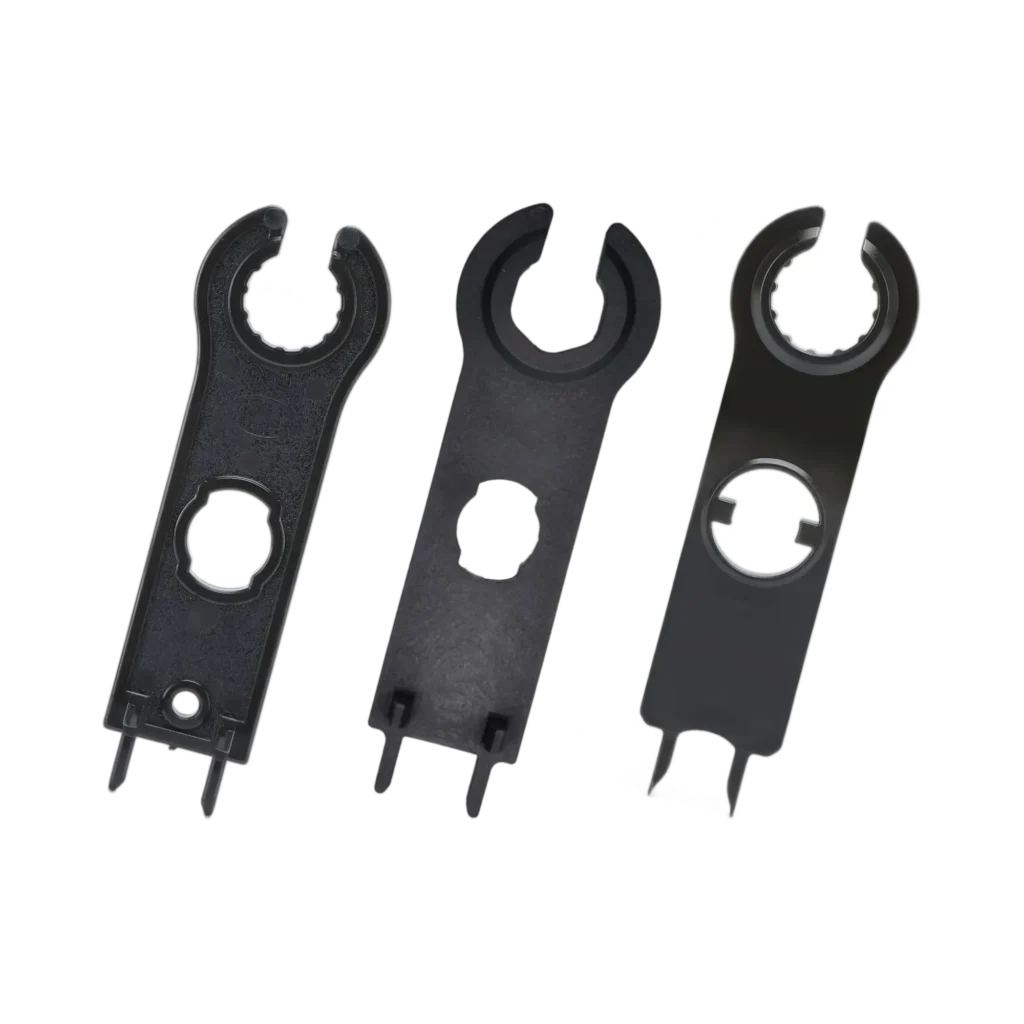

PV Connector Wrench for Solar Connector Assembly – UH-PT-WR01
Model UH-PT-WR01
UH-PT-WR01 is a manual PV connector wrench platform available in 1000V flat-head, 1500V flat-head and 1000V round-head configurations. Each variant is designed for assembly and disassembly of compatible solar connector housings and cable-gland interfaces during PV installation and maintenance.
- 1000V & 1500V Profiles
- Flat & Round Head Options
- Manual Connector Assembly Tool
Operation
Manual
Available Configurations
3
Head Profiles
Flat Head / Round Head
Connector System Classes
1000V / 1500V
1000V and 1500V identify the intended connector family/profile, not an electrical insulation rating of the wrench. Confirm the exact connector housing and cable-gland geometry before use.
Overview
Product Overview
UH-PT-WR01 is a dedicated hand-tool platform for assembling and servicing photovoltaic connectors. Three configurations are available to cover different connector interface profiles: a 1000V flat-head wrench, 1500V flat-head wrench and 1000V round-head wrench.
The correct wrench should be selected according to the physical connector housing and cable-gland profile rather than system voltage alone. Using a matched connector tool helps provide controlled engagement during installation, maintenance and connector replacement.
Features
Key Product Features
1000V & 1500V Profiles
Flat & Round Head Options
Manual Connector Assembly Tool
Three Connector Tool Configurations
Choose from 1000V flat-head, 1500V flat-head and 1000V round-head configurations to match different PV connector interface designs.
Profile-Specific Engagement
The wrench geometry is designed to engage compatible connector housings and cable-gland interfaces more securely than general-purpose hand tools.
Manual Field Operation
No electrical power or pneumatic supply is required, making the tool suitable for field installation, commissioning and maintenance work.
Assembly and Disassembly
Suitable for connector installation, cable-gland handling and controlled disassembly where the wrench profile matches the connector design.
Consolidated Tool Platform
Multiple connector wrench configurations are grouped under one UH-PT-WR01 platform, simplifying model selection and procurement for solar installers, distributors and project buyers.
Applications Overview
UH-PT-WR01 is intended for photovoltaic connector installation, commissioning, maintenance and replacement work in rooftop, commercial and utility-scale solar systems. Always confirm the connector housing and cable-gland geometry before selecting a wrench configuration.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
General Specifications
| Parameter | Specification |
|---|---|
| Model | UH-PT-WR01 |
| Product Type | PV Connector Wrench |
| Operation | Manual |
| Available Configurations | 3 |
| Head Profiles | Flat Head / Round Head |
| Connector System Classes | 1000V / 1500V |
| Primary Function | PV connector assembly and disassembly |
| Application | Solar PV installation and maintenance |
Selection
Choose the Correct PV Connector Wrench
| Model | Connector Class | Head Profile | Selection |
|---|---|---|---|

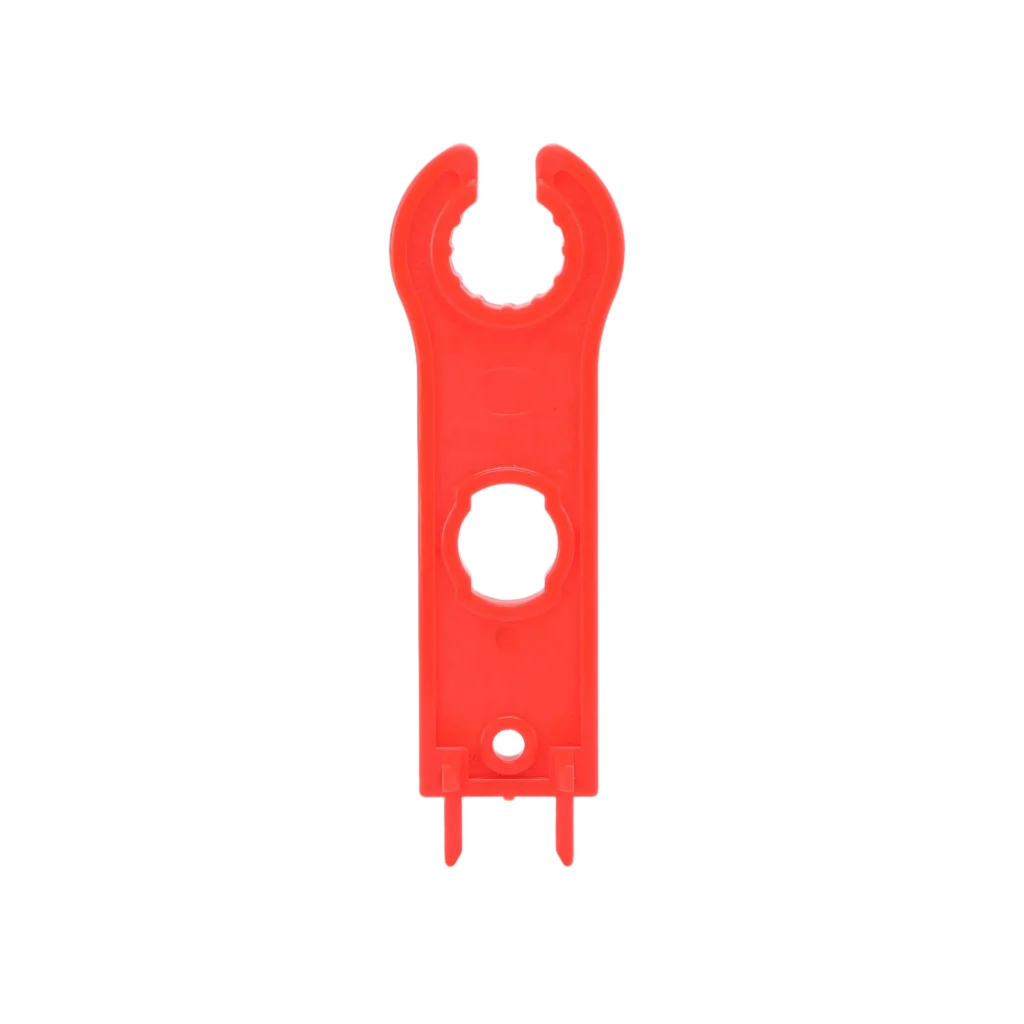

| UH-PT-WR01-1000F | 1000V | Flat Head | For compatible 1000V connector profiles requiring a flat-head wrench |
| UH-PT-WR01-1500F | 1500V | Flat Head | For compatible 1500V connector profiles requiring a flat-head wrench |
| UH-PT-WR01-1000R | 1000V | Round Head | For compatible 1000V connector profiles requiring a round-head wrench |
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-PT-WR01 is intended for photovoltaic connector installation, commissioning, maintenance and replacement work in rooftop, commercial and utility-scale solar systems. Always confirm the connector housing and cable-gland geometry before selecting a wrench configuration.
Installation
Installation Guidance
1. Identify the PV connector model and confirm the required wrench profile before use.
2. Isolate the PV circuit and follow the applicable site safety procedure before connector installation or disassembly.
3. Position the wrench fully on the compatible connector housing or cable-gland interface. Do not force a wrench onto an incompatible profile.
4. When required, use the appropriate counter-hold tool to prevent the mating connector body or cable from twisting.
5. Tighten or loosen the connector according to the connector manufacturer's assembly and torque requirements. The wrench itself does not define the required tightening torque.
6. Do not select a wrench solely because both the connector and tool are described as 1000V or 1500V. Physical interface compatibility must also be confirmed.
7. Inspect the wrench before use and replace it if the engagement surfaces are worn, cracked or damaged.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.

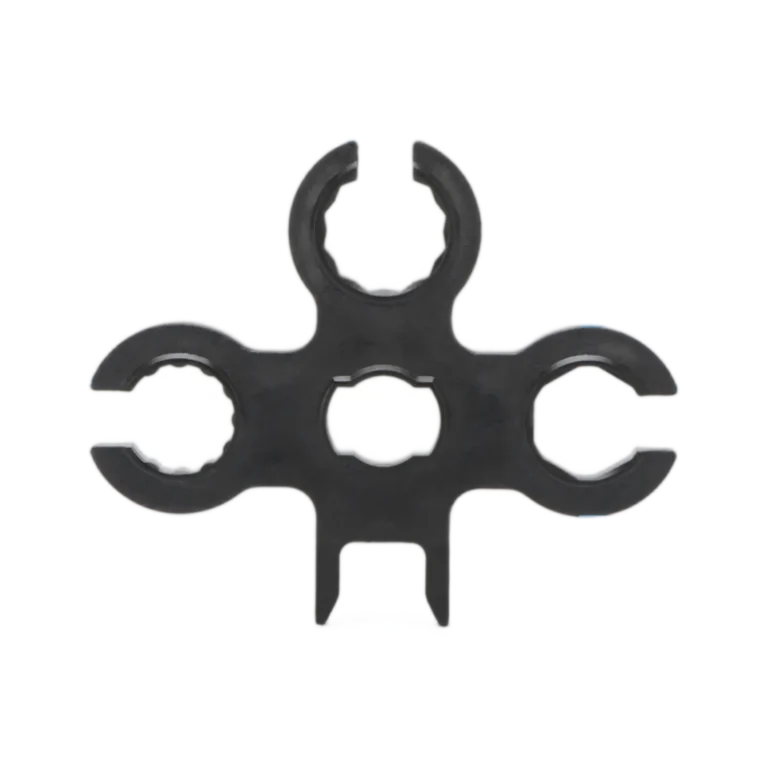

Multifunction PV Connector Wrench – UH-PT-MW01
UH-PT-MW01 is a multifunction hand wrench platform for photovoltaic connector installation and maintenance. Two tool configurations are available, providing multiple engagement profiles for common connector assembly and disassembly operations while reducing the number of individual hand tools required on site.
View ProductImportant Notes
1000V and 1500V identify the intended connector family/profile, not an electrical insulation rating of the wrench. Confirm the exact connector housing and cable-gland geometry before use.
FAQ
Frequently Asked Questions
Is UH-PT-WR01 compatible with all PV connectors?
No. PV connector housings and cable-gland interfaces vary between product families. Select the wrench according to the exact connector geometry and confirmed tool interface.
What do the 1000V and 1500V descriptions mean?
They identify the intended PV connector family or profile associated with each wrench configuration. They do not represent an electrical insulation or live-working voltage rating for the wrench.
What is the difference between the flat-head and round-head versions?
They use different engagement profiles for different connector housing or cable-gland geometries. Match the wrench profile to the connector being installed or serviced.
Can this wrench be used to tighten a PV connector cable gland?
Yes, where the selected wrench profile correctly matches the connector's cable-gland interface. Follow the connector manufacturer's specified assembly procedure and tightening requirements.
How should I specify the correct wrench when requesting a quotation?
Provide the connector model, system class and, where possible, a connector photo or drawing. UHCCY can then confirm the appropriate UH-PT-WR01 configuration for the application.
