Multifunction PV Connector Wrench – UH-PT-MW01
Model UH-PT-MW01
UH-PT-MW01 is a multifunction hand wrench platform for photovoltaic connector installation and maintenance. Two tool configurations are available, providing multiple engagement profiles for common connector assembly and disassembly operations while reducing the number of individual hand tools required on site.
- Multiple Wrench Profiles
- Two Tool Configurations
- Compact Manual Operation
Operation
Manual
Available Configurations
2
Tool Design
Multi-Profile
UH-PT-MW01 is not a universal connector tool. Confirm the connector housing, locking and cable-gland geometry before selecting a wrench configuration or engagement profile.
Overview
Product Overview
UH-PT-MW01 combines several wrench engagement profiles into a compact manual tool for photovoltaic connector installation and maintenance. The platform is available in two distinct configurations to accommodate different connector housing, locking and cable-gland interfaces.
Compared with a dedicated single-profile wrench such as the UH-PT-WR01 – PV Connector Wrench, UH-PT-MW01 is intended for installers who require greater tooling flexibility during assembly, servicing and connector replacement. Exact compatibility should always be confirmed against the connector geometry before use.
Features
Key Product Features
Multiple Wrench Profiles
Two Tool Configurations
Compact Manual Operation
Multiple Engagement Profiles
Multiple wrench profiles are integrated into each tool configuration to support different connector housing, locking and cable-gland operations.
Two Tool Configurations
UH-PT-MW01 is available in two distinct wrench designs, allowing users to select the geometry that better matches their connector installation requirements.
Compact Tool Integration
Several functional wrench profiles are combined into a single hand tool, helping reduce the number of separate connector wrenches carried during field work.
Manual Field Operation
The wrench requires no electrical, hydraulic or pneumatic power and is suitable for installation, commissioning and maintenance work.
Installation and Service Use
Designed for connector assembly, disassembly and cable-gland handling where the selected tool profile correctly engages the connector interface.
Complementary Tooling
UH-PT-MW01 can be used alongside dedicated PV connector wrenches, cable crimping tools, wire strippers and cable cutters as part of a complete photovoltaic installation tool set.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
General Specifications
| Parameter | Specification |
|---|---|
| Model | UH-PT-MW01 |
| Product Type | Multifunction PV Connector Wrench |
| Operation | Manual |
| Available Configurations | 2 |
| Tool Design | Multi-Profile |
| Primary Functions | Connector assembly and disassembly |
| Additional Function | Cable-gland / locking interface handling |
| Application | PV installation and maintenance |
Variant Configuration
| Parameter | Wrench Profile | Recommended Selection |
|---|---|---|
| UH-PT-MW01-A | Multiple integrated profiles | Select according to connector interface geometry |
| UH-PT-MW01-B | Multiple integrated profiles | Select according to connector interface geometry |
Selection
Choose the Right Multifunction Wrench
| Model | Main Difference | Selection Method |
|---|---|---|

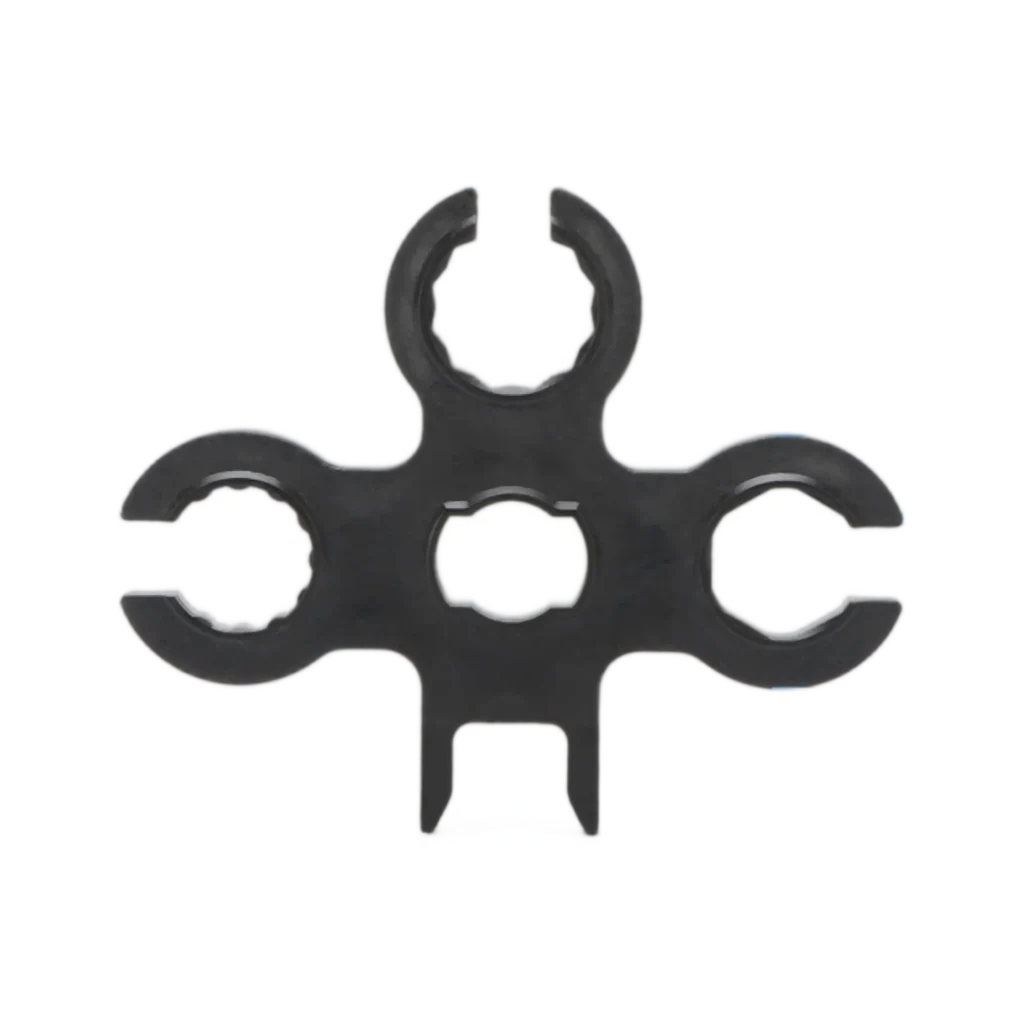

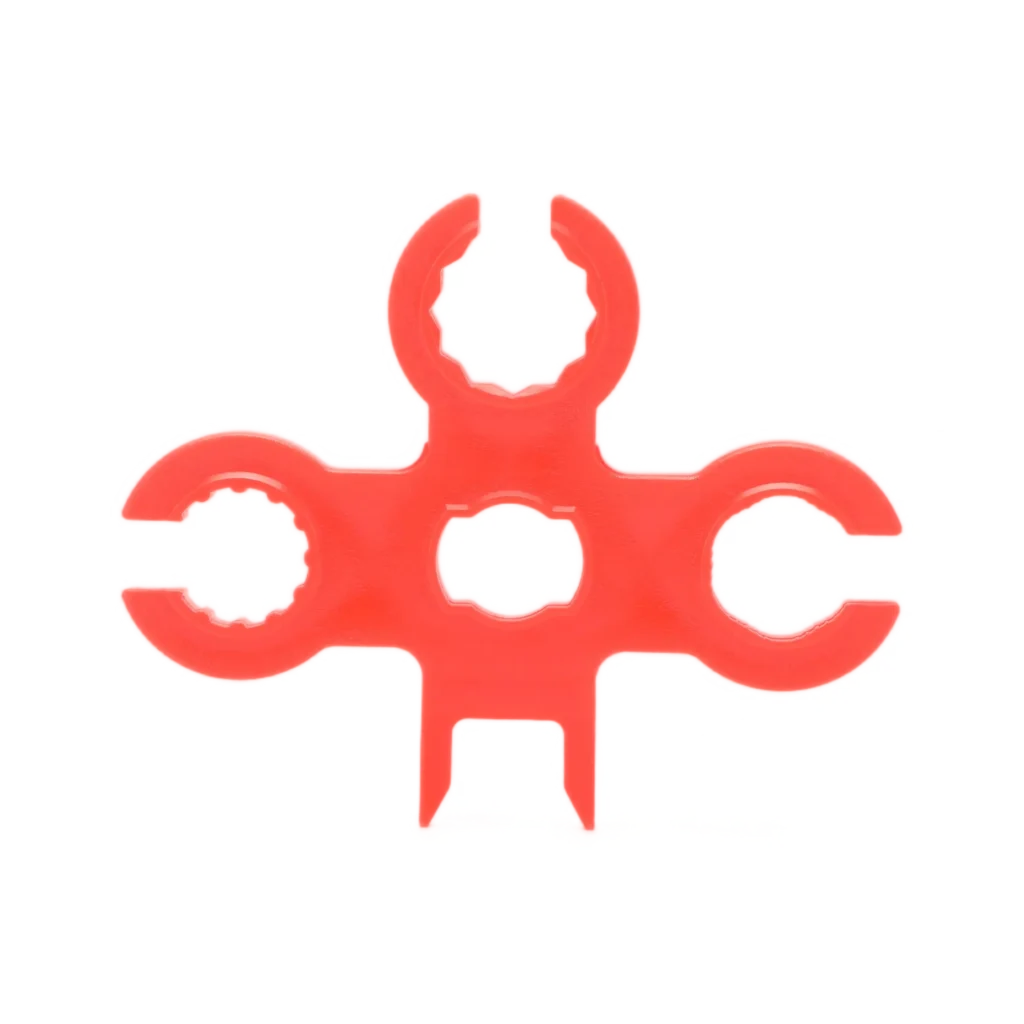

| UH-PT-MW01-A | First multi-profile wrench geometry | Match the available wrench profiles to the connector interface |
| UH-PT-MW01-B | Second multi-profile wrench geometry | Can be used to tighten various sizes of MC4 heads from 18, 20 and 21 mm. |
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-PT-MW01 is designed for photovoltaic connector installation and servicing where several connector interface profiles may be encountered. It is suitable for field assembly, commissioning, maintenance and connector replacement, provided the selected wrench profile matches the actual connector geometry.
Installation
Installation Guidance
1. Identify the PV connector to be installed or serviced and inspect its housing, locking and cable-gland interfaces.
2. Select the UH-PT-MW01 configuration and wrench profile that correctly matches the connector geometry.
3. Ensure the PV circuit is isolated and follow the applicable installation and site safety procedures before working on the connector.
4. Place the selected wrench profile fully onto the intended connector interface. Do not force an undersized or incorrectly shaped profile onto the connector.
5. Use a second wrench or suitable counter-hold tool where required to prevent the connector body or cable from twisting during tightening or loosening.
6. Follow the connector manufacturer's specified assembly sequence and tightening requirements. UH-PT-MW01 does not define the required connector torque.
7. Do not use the multifunction wrench as a substitute for a calibrated torque tool where a specified tightening torque must be verified.
8. Inspect the wrench before use. Replace the tool if any engagement profile is cracked, excessively worn or deformed.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.

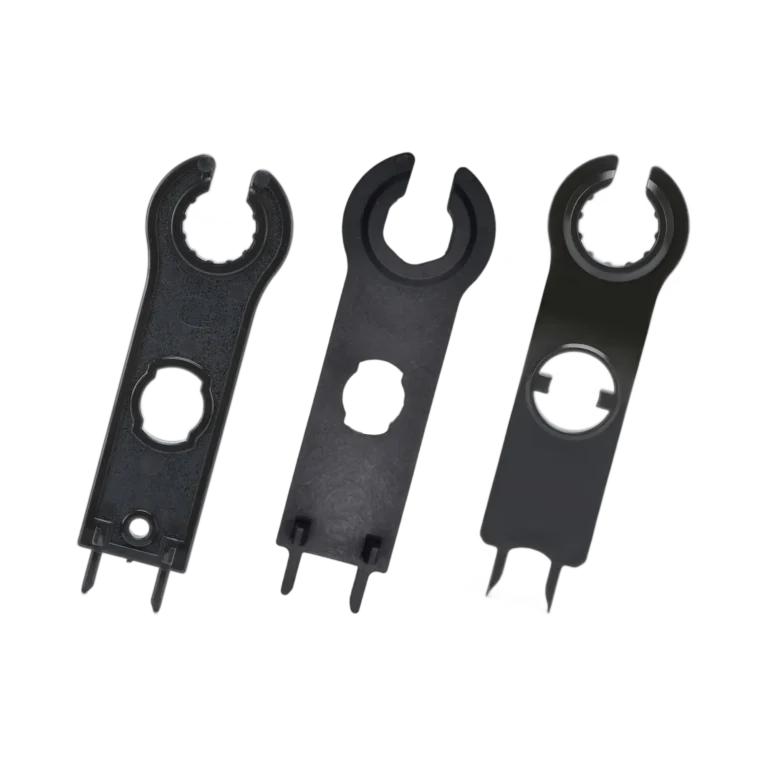

PV Connector Wrench for Solar Connector Assembly – UH-PT-WR01
UH-PT-WR01 is a manual PV connector wrench platform available in 1000V flat-head, 1500V flat-head and 1000V round-head configurations. Each variant is designed for assembly and disassembly of compatible solar connector housings and cable-gland interfaces during PV installation and maintenance.
View ProductImportant Notes
UH-PT-MW01 is not a universal connector tool. Confirm the connector housing, locking and cable-gland geometry before selecting a wrench configuration or engagement profile.
FAQ
Frequently Asked Questions
What is a multifunction PV connector wrench?
A multifunction PV connector wrench combines several engagement profiles into one hand tool for photovoltaic connector assembly, disassembly and cable-gland handling.
How many UH-PT-MW01 configurations are available?
UH-PT-MW01 is currently available in two distinct tool configurations. Select the version according to the physical interface of the connector being installed or serviced.
Is UH-PT-MW01 compatible with all solar connectors?
No. Connector housing, locking and cable-gland geometries differ between product families. Compatibility should be confirmed according to the actual connector interface rather than assumed from appearance alone.
