UH-PC-MF01 uses a 10 × 38 mm photovoltaic fuse link. Select the fuse current rating according to the PV module maximum series fuse rating, string short-circuit current, conductor capacity and applicable system protection requirements.
Solar Connector
1000V Inline Fuse Solar Connector for 10 × 38 mm PV Fuse – UH-PC-MF01
Model UH-PC-MF01

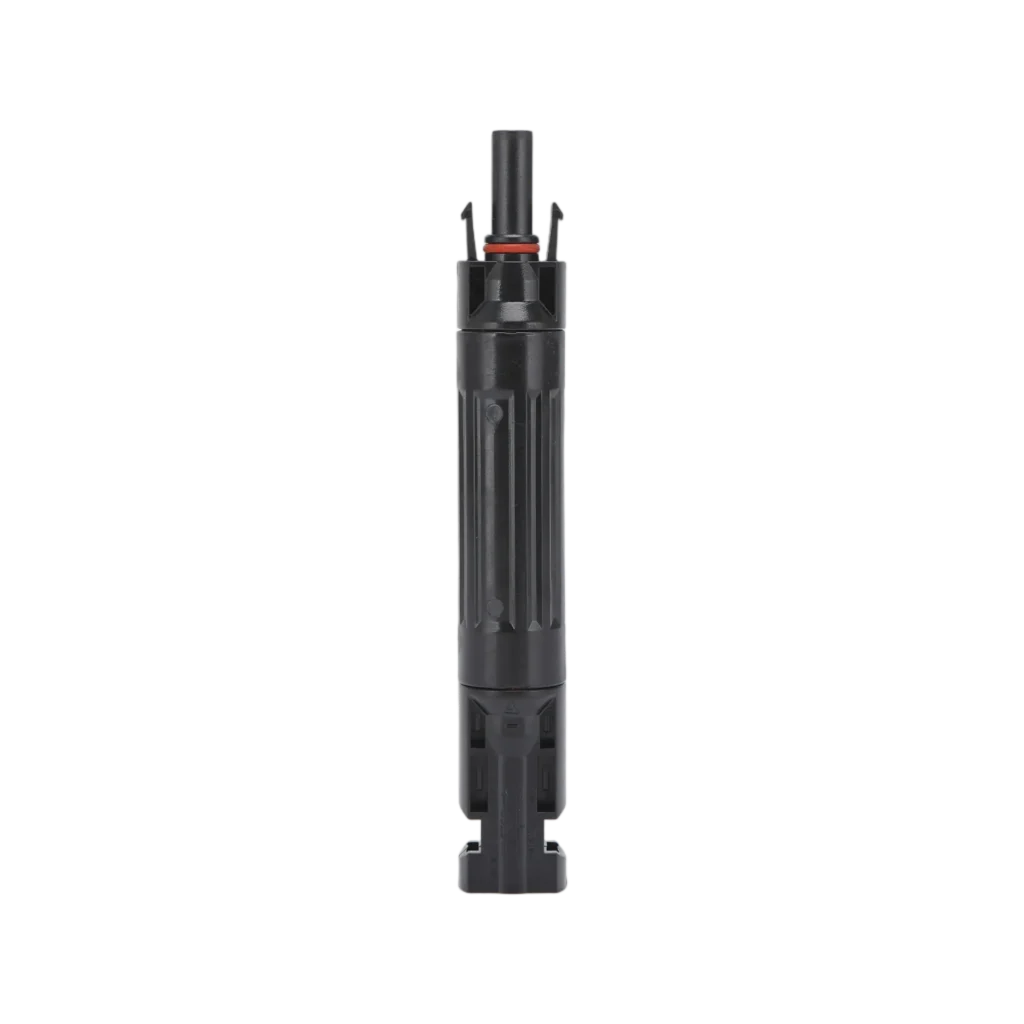

UH-PC-MF01 is a 1000V DC inline fuse solar connector designed to add replaceable overcurrent protection directly into photovoltaic string wiring. The connector accommodates a 10 × 38 mm PV fuse link and combines an Ø4 mm contact system, PC insulated housing and IP67 protection when correctly assembled and mated.
- Inline Fuse Protection
- 10 × 38 mm Fuse
- 1000V DC Rating
Rated Voltage
1000V DC
Fuse Size
10 × 38 mm
Cable Size
4 mm² / 12 AWG
Insulation Material
PC
Degree of Protection
IP67, correctly assembled and mated
Ambient Temperature
-40°C to +85°C
Use a 10 × 38 mm photovoltaic fuse with voltage and current ratings matched to the PV string design.
Overview
Product Overview
UH-PC-MF01 is a 1000V DC inline fuse solar connector designed to integrate photovoltaic string protection directly into the DC cable connection. The housing accommodates a standard 10 × 38 mm cylindrical PV fuse link, allowing the fuse rating to be selected according to the protection requirements of the photovoltaic circuit.
Unlike the standard UH-PC-MC01 Solar Connector, UH-PC-MF01 incorporates an inline fuse holder within the connector assembly. It uses an Ø4 mm contact system and PC insulated housing with IP67 protection when correctly assembled and mated. Tin-plated copper contacts are standard, with silver-plated copper contacts available on request.
Features
Key Product Features
Inline Fuse Protection
10 × 38 mm Fuse
1000V DC Rating
Integrated Inline Fuse Holder
The fuse holder is integrated into the photovoltaic connector assembly, allowing string overcurrent protection to be incorporated directly into the DC connection.
10 × 38 mm Fuse Format
UH-PC-MF01 accommodates the widely used 10 × 38 mm cylindrical photovoltaic fuse format, allowing the fuse rating to be selected for the individual PV string design.
1000V DC Application
The connector housing is rated for 1000V DC photovoltaic applications when used with appropriately rated fuse and system components.
Replaceable Fuse Link
The fuse link can be installed or replaced within the inline holder, avoiding the need to replace the complete connector assembly when fuse service is required.
IP67 Mated Protection
Correct assembly and complete mating provide IP67 environmental protection for applicable outdoor photovoltaic wiring.
Two Contact Finishes
Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical & Fuse Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 1000V DC |
| Fuse Format | Cylindrical PV Fuse Link |
| Fuse Size | 10 × 38 mm |
| Fuse Current Rating | Selected according to PV string protection design |
| Cable Size | 4 mm² / 12 AWG |
| Connector Function | Inline Fuse Protection |
| Configuration | Inline Connector |
Contact & Materials
| Parameter | Value |
|---|---|
| Contact Material | Tin-Plated Copper |
| Optional Contact Finish | Silver-Plated |
| Insulation Material | PC |
| Housing Color | Black |
Environmental & Mechanical
| Parameter | Value |
|---|---|
| Degree of Protection | IP67, correctly assembled and mated |
| Ambient Temperature | -40°C to +85°C |
| Fuse Access | Replaceable Fuse Link |
| Connector Structure | Inline Fuse Holder Connector |
| Overall Length | 130 mm |
Selection
Select the Correct Fuse for UH-PC-MF01
| Selection Item | Requirement |
|---|---|
| Fuse Size | 10 × 38 mm |
| Fuse Application | Photovoltaic DC String Protection |
| Fuse Voltage Rating | Suitable for the 1000V DC system |
| Fuse Current Rating | Selected according to PV string design |
| Recommended Fuse Category | gPV for photovoltaic string protection |
| Connector Contact Finish | Tin-Plated Standard / Silver-Plated Optional |
Mechanical Data
Dimensions

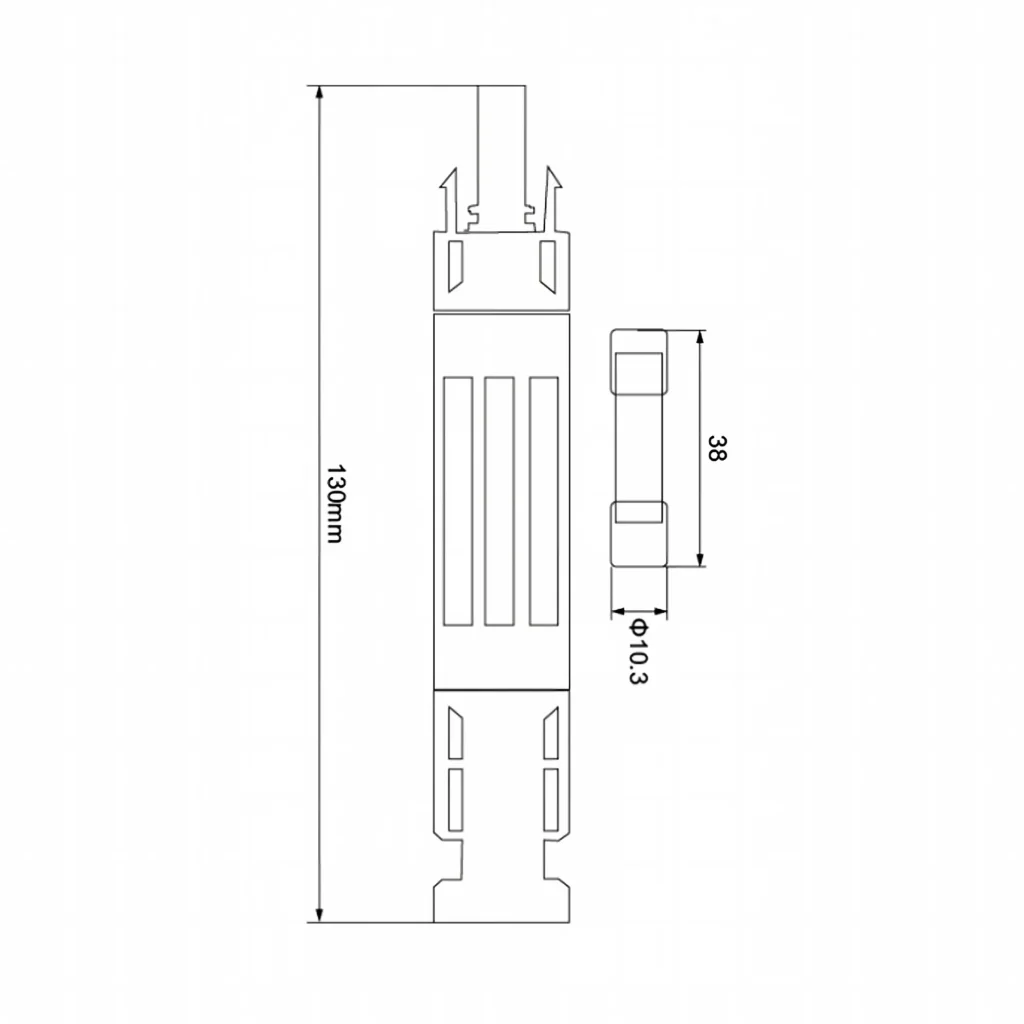

UH-PC-MF01 uses an elongated inline fuse housing with an overall length of approximately 130 mm. The internal fuse chamber is designed around the 10 × 38 mm cylindrical photovoltaic fuse format.
| Dimension | Value |
|---|---|
| Overall Connector Length | 130 mm |
| Fuse Length | 38 mm |
| Fuse Diameter Shown | Ø10.3 mm |
| Nominal Fuse Format | 10 × 38 mm |
| Units | mm |
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-PC-MF01 is intended for photovoltaic strings that require localized DC overcurrent protection in the cable connection. Typical uses include PV module strings, extension wiring and array circuits where reverse-current or parallel-string fault protection is required by the system design.
Installation
Installation Guidance
1. Determine the required photovoltaic fuse rating from the PV module, string configuration and complete circuit protection design.
2. Use a 10 × 38 mm PV fuse link with voltage and current ratings suitable for the circuit.
3. Ensure the photovoltaic circuit is isolated before opening the fuse connector or installing the fuse link.
4. Install the fuse link fully inside the UH-PC-MF01 fuse chamber and close the connector body securely.
5. Check the connector housing, sealing surfaces and fuse-holder assembly before mating.
6. Mate the corresponding connector interfaces completely and confirm that the locking structure is engaged.
7. Verify polarity and complete assembly before the photovoltaic circuit is energized. Never replace the fuse while the circuit is under load.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.
1000V Solar Connector for 2.5 – 6 mm² PV Cable – UH-PC-MC01
UH-PC-MC01 is a 1000V DC solar connector for field-assembled PV cable connections, available in 30A / 2.5 mm², 45A / 4 mm² and 50A / 6 mm² configurations. It uses crimp contacts, PC insulation and IP67 protection when correctly assembled and mated for outdoor photovoltaic wiring.
View Product
Compact 1000V Solar Connector for 2.5, 4 & 6 mm² PV Cable – UH-PC-MC02
UH-PC-MC02 is a compact 1000V DC solar connector for field-assembled photovoltaic cable connections. It is available in 30A / 2.5 mm², 45A / 4 mm² and 50A / 6 mm² configurations, combining crimp termination, PC insulation and IP67 protection when correctly assembled and mated.
View ProductImportant Notes
Use a 10 × 38 mm photovoltaic fuse with voltage and current ratings matched to the PV string design.
FAQ
Frequently Asked Questions
What fuse size does UH-PC-MF01 use?
UH-PC-MF01 is designed for a 10 × 38 mm cylindrical photovoltaic fuse link.
What fuse current rating should I install?
Select the fuse rating according to the PV module maximum series fuse rating, string short-circuit current, cable capacity and applicable system protection requirements. UH-PC-MF01 does not require one fixed fuse amperage for every installation.
What is the difference between UH-PC-MF01 and a standard solar connector?
Unlike the UH-PC-MC01 Solar Connector, UH-PC-MF01 incorporates a 10 × 38 mm inline fuse holder so that photovoltaic string overcurrent protection can be integrated directly into the connector assembly.
Should a gPV fuse be used?
A gPV fuse is the standard photovoltaic fuse category used for PV string protection. The selected fuse must also have voltage and current ratings suitable for the specific photovoltaic circuit.
Can the fuse be replaced?
Yes. UH-PC-MF01 is designed around a replaceable 10 × 38 mm fuse link. The photovoltaic circuit must be safely isolated before the fuse holder is opened or the fuse is replaced.
Are silver-plated contacts available?
Yes. Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.
