1500V High-Current Solar Connector up to 60A – UH-PC-MC04
Model UH-PC-MC04

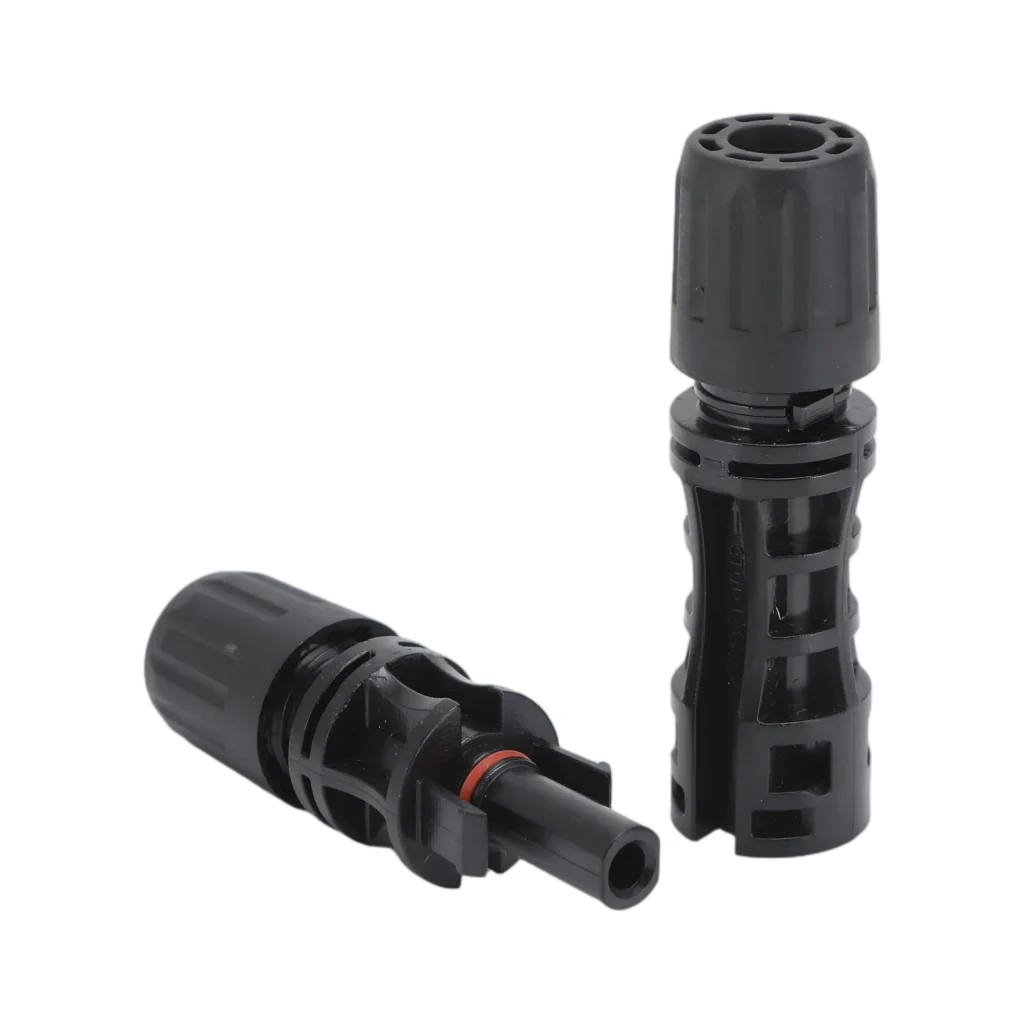

UH-PC-MC04 is a high-current 1500V DC solar connector covering 30A / 2.5 mm², 45A / 4 mm², 50A / 6 mm² and 60A / 10–16 mm² PV cable configurations. Its larger connector platform combines field crimp termination, PC insulation and IP67 protection when correctly assembled and mated.
- 1500V DC Rating
- Up to 60A
- Up to 16 mm²
Rated Voltage
1500V DC
Rated Current
30A ~ 60A
Termination Method
Crimp
Degree of Protection
IP67, correctly assembled and mated
Ambient Temperature
-40°C to +85°C
Match the contact configuration to the specified PV conductor size before assembly.
Overview
Product Overview
UH-PC-MC04 is a 1500V DC high-current solar connector designed for field-assembled cable-to-cable connections in photovoltaic systems. Available configurations include 30A for 2.5 mm² cable, 45A for 4 mm², 50A for 6 mm², and 60A for 10 or 16 mm² PV conductors.

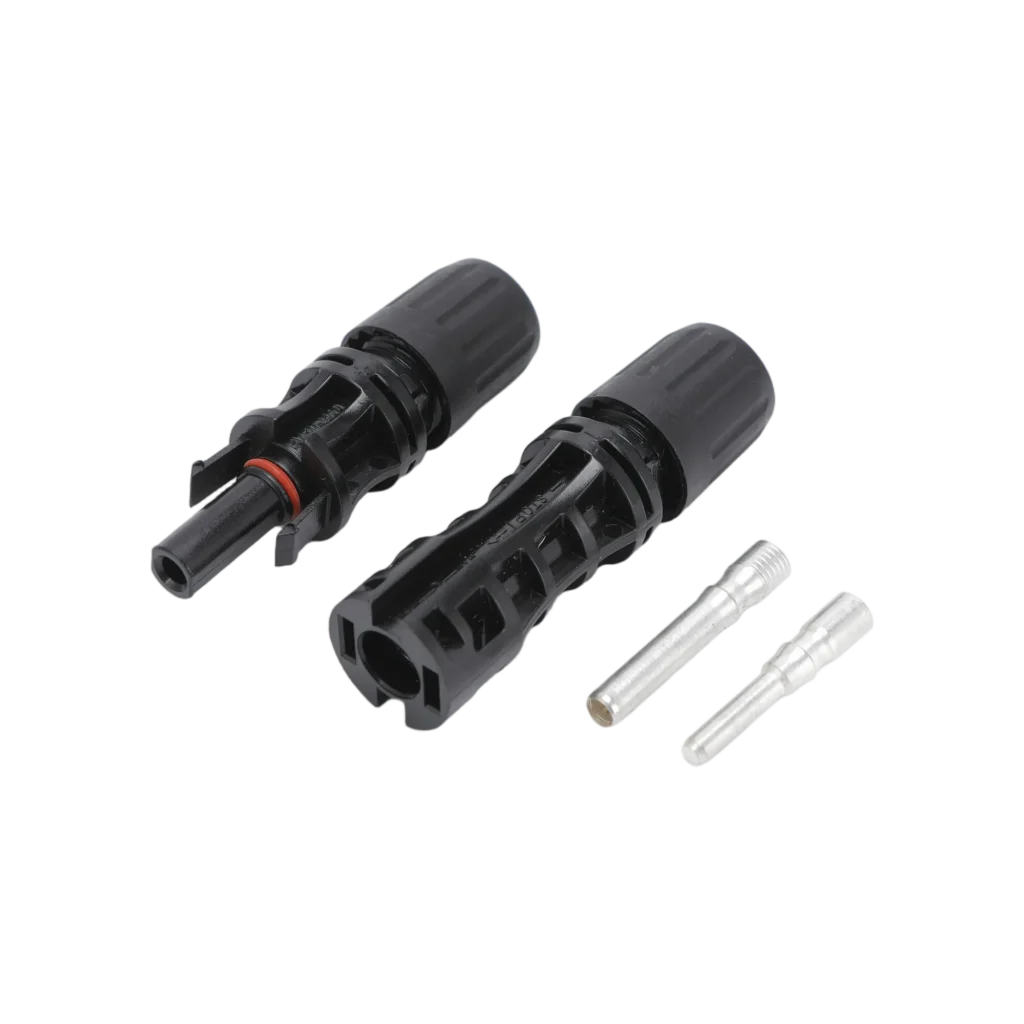

UH-PC-MC04 uses a larger connector platform to extend the supported conductor range up to 16 mm² and the connector rating up to 60A. Tin-plated copper contacts are standard, while silver-plated copper contacts are available on request.
Features
Key Product Features
1500V DC Rating
Up to 60A
Up to 16 mm²
Up to 60A Connector Rating
The high-current platform extends the available connector configurations to 60A for larger photovoltaic conductors.
Conductor Sizes up to 16 mm²
UH-PC-MC04 supports 2.5, 4, 6, 10 and 16 mm² conductor options for a wider range of photovoltaic DC cable requirements.
1500V DC System Design
The connector platform is rated for 1500V DC photovoltaic wiring used in modern commercial and utility-scale PV arrays.
Field Crimp Termination
Replaceable crimp contacts allow the connector configuration to be matched to the required conductor size before field assembly.
IP67 Mated Protection
IP67 environmental protection is provided after correct cable assembly and complete mating of matching connector components.
Two Contact Finishes
Tin-plated copper contacts are supplied as standard, with silver-plated copper contacts available on request.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 1500V DC |
| Rated Current | 30A ~ 60A |
| Cable Size | 2.5 ~ 16 mm² / 14 ~ 6 AWG |
| 30A Configuration | 2.5 mm² PV Cable |
| 45A Configuration | 4 mm² PV Cable |
| 50A Configuration | 6 mm² PV Cable |
| 60A Configuration | 10 / 16 mm² PV Cable |
| Configuration | Inline Connector |
Cable & Contact
| Parameter | Value |
|---|---|
| Termination Method | Crimp |
| Contact Material | Tin-Plated Copper |
| Optional Contact Finish | Silver-Plated |
Environmental & Mechanical
| Parameter | Value |
|---|---|
| Degree of Protection | IP67, correctly assembled and mated |
| Ambient Temperature | -40°C to +85°C |
| Insulation Material | PC |
| Housing Color | Black |
| Connection Structure | Locking Connector Housing |
Selection
Choose the Correct UH-PC-MC04 Configuration
| Model | Value | Column 3 | Column 4 | Column 5 | Column 6 |
|---|---|---|---|---|---|
| 30A | 2.5 mm² | 14 AWG | 1500V DC | Tin-Plated Copper | Silver-Plated Copper |
| 45A | 4 mm² | 12 AWG | 1500V DC | Tin-Plated Copper | Silver-Plated Copper |
| 50A | 6 mm² | 10 AWG | 1500V DC | Tin-Plated Copper | Silver-Plated Copper |
| 60A | 10 mm² | 8 AWG | 1500V DC | Tin-Plated Copper | Silver-Plated Copper |
| 60A | 16 mm² | 6 AWG | 1500V DC | Tin-Plated Copper | Silver-Plated Copper |
Mechanical Data
Dimensions

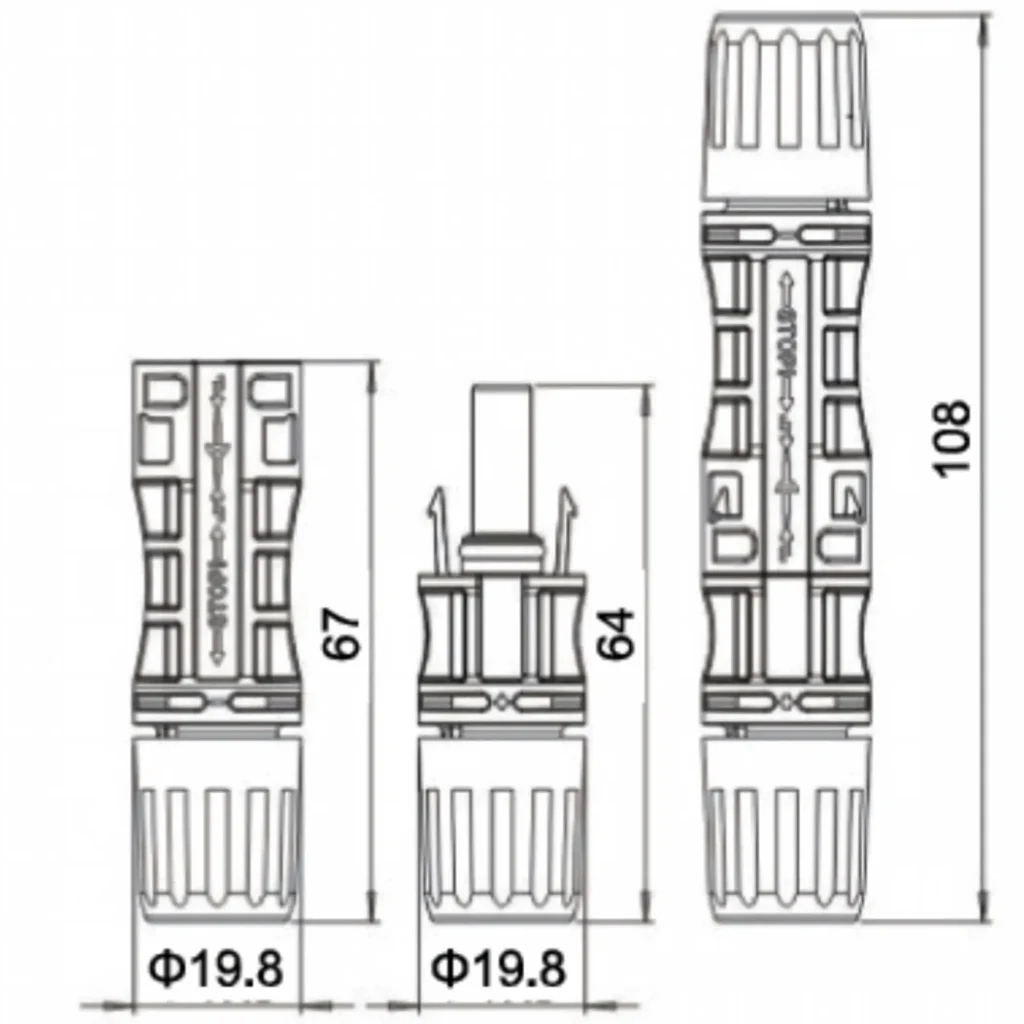

UH-PC-MC04 uses an enlarged connector housing and multiple contact geometries to accommodate conductor configurations up to 16 mm². Refer to the dimensional drawing for the housing and the specific 30A, 45A, 50A or 60A contact dimensions required for your configuration.
| Dimension | Value |
|---|---|
| Housing Length – Side A | 67 mm |
| Housing Length – Side B | 64 mm |
| Maximum Housing Diameter | Ø19.8 mm |
| Maximum Length Shown | 108 mm |
| Units | mm |
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-PC-MC04 is intended for high-voltage photovoltaic string and array wiring where larger PV conductors or higher connector current capacity are required. The 10 and 16 mm² configurations are particularly relevant to commercial and utility-scale installations, long DC cable runs and higher-current photovoltaic interconnections.
Installation
Installation Guidance
1. Identify the required conductor and contact configuration before preparing the PV cable.
2. Strip the conductor without damaging strands or the cable jacket required for connector sealing.
3. Insert the conductor into the matching 30A, 45A, 50A or 60A crimp contact.
4. Crimp the contact using tooling and dies suitable for the selected conductor cross-section.
5. Insert the terminated contact fully into the corresponding connector housing.
6. Assemble and tighten the cable sealing section so that the PV cable is correctly retained and sealed.
7. Mate the connector halves completely and confirm locking, polarity and conductor retention before energizing the circuit.
Important Notes
Match the contact configuration to the specified PV conductor size before assembly.
FAQ
Frequently Asked Questions
What conductor sizes does UH-PC-MC04 support?
UH-PC-MC04 supports 2.5, 4, 6, 10 and 16 mm² photovoltaic conductors, covering connector configurations from 30A up to 60A.
Which configuration is available for 60A applications?
The 60A configuration is available for 10 and 16 mm² PV conductors. Cable and connector sizing should still be coordinated with the electrical design and installation conditions of the complete photovoltaic circuit.
Are silver-plated contacts available?
Yes. Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.
Is UH-PC-MC04 suitable for outdoor PV wiring?
The connector is rated IP67 when correctly assembled and fully mated, supporting applicable outdoor photovoltaic cable installations.
Does the 60A rating mean every connected cable can continuously carry 60A?
No. The connector rating and cable ampacity are separate design considerations. Conductor size, cable construction, installation method, ambient temperature and the complete PV circuit requirements must all be considered when determining allowable operating current.
