Select the required pin or socket contact version together with the conductor cross-section and contact finish. Both mating components should be specified as part of the same UH-PC-PM01 connector system.
Solar Connector

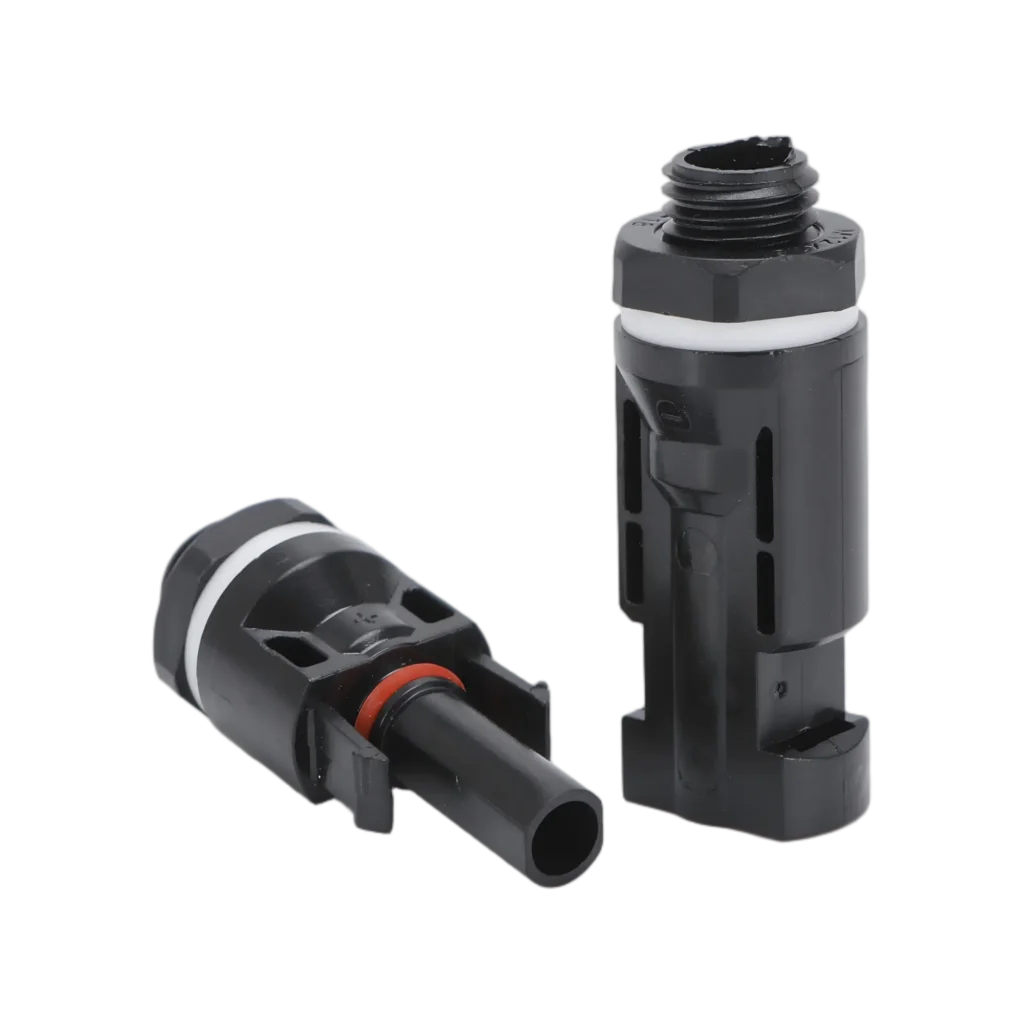

1000V Panel-Mount Solar Connector – UH-PC-PM01
Model UH-PC-PM01
UH-PC-PM01 is a 30A, 1000V DC panel-mount solar connector designed to provide a detachable photovoltaic connection through equipment panels and enclosures. It supports 2.5, 4 and 6 mm² conductors, with crimp contacts, threaded panel mounting and IP67 protection when correctly installed and mated.
- Panel-Mount Design
- 30A / 1000V DC
- IP67 Mated Protection
Rated Voltage
1000V DC
Rated Current
30A
Cable Size
4 mm² / 12 AWG
Mounting Thread
M11.8 × 1.5
Degree of Protection
IP67, installed and mated
Ambient Temperature
-40°C to +85°C
IP67 protection applies when the connector is correctly installed and fully mated with matching UH-PC-PM01 components.
Overview
Product Overview
UH-PC-PM01 is a 1000V DC panel-mount solar connector designed for photovoltaic connections through equipment panels, housings and electrical enclosures. The threaded mounting body provides a fixed interface while the detachable mating side allows PV wiring to be connected and disconnected during installation or servicing.
The connector is rated at 30A and supports 2.5, 4 and 6 mm² conductors. Standard versions use tin-plated copper contacts, with silver-plated copper contacts available on request. The PC insulated housing provides IP67 protection when correctly installed and fully mated.
Features
Key Product Features
Panel-Mount Design
30A / 1000V DC
IP67 Mated Protection
Threaded Panel Mounting
The M11.8 × 1.5 threaded body allows the connector interface to be mechanically secured through a suitable equipment panel or enclosure.
30A Photovoltaic Connection
UH-PC-PM01 provides a 30A connector configuration for 1000V DC photovoltaic wiring.
Multiple Conductor Sizes
The contact system supports 2.5, 4 and 6 mm² PV conductors, allowing one connector platform to cover several common photovoltaic cable sizes.
Crimp Contact Termination
Crimp contacts provide the conductor termination inside the panel-mounted connector assembly and should be installed with tooling matched to the selected contact and cable size.
IP67 Mated Protection
Correct installation and complete mating provide IP67 environmental protection for applicable outdoor photovoltaic equipment connections.
Two Contact Finishes
Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| Connector Type | Panel-Mount / Bulkhead |
| Cable Size | 4 mm² / 12 AWG |
| Termination | Crimp |
Cable & Contact
| Parameter | Value |
|---|---|
| Contact Material | Tin-Plated Copper |
| Optional Contact Finish | Silver-Plated |
| Configuration | Inline Connector |
Mounting & Environmental
| Parameter | Value |
|---|---|
| Mounting Type | Threaded Panel Mount |
| Mounting Thread | M11.8 × 1.5 |
| Housing Diameter | Ø19 mm |
| Degree of Protection | IP67, installed and mated |
| Ambient Temperature | -40°C to +85°C |
| Insulation Material | PC |
| Housing Color | Black |
Selection
Configure the UH-PC-PM01 Panel Connector
| Connector Version | Rated Current | Conductor Size | Rated Voltage | Standard Contact | Optional Contact |
|---|---|---|---|---|---|
| Pin Contact | 30A | 2.5 / 4 / 6 mm² | 1000V DC | Tin-Plated Copper | Silver-Plated Copper |
| Socket Contact | 30A | 2.5 / 4 / 6 mm² | 1000V DC | Tin-Plated Copper | Silver-Plated Copper |
Mechanical Data
Dimensions
UH-PC-PM01 uses an Ø19 mm panel-mount housing with an M11.8 × 1.5 threaded mounting section. Refer to the dimensional drawing for the complete panel interface and pin/socket contact geometry before preparing enclosure openings.
| Dimension | Value |
|---|---|
| Maximum Housing Diameter | Ø19 mm |
| Housing Length – Version A | 49.5 mm |
| Housing Length – Version B | 51.5 mm |
| Mounting Thread | M11.8 × 1.5 |
| Contact Diameter | Ø4 mm |
| Pin Contact Length | 32.9 mm |
| Socket Contact Length | 29 mm |
Applications
Where This Product Is Used
PV Combiner Boxes
Connector assemblies support DC cable connections between PV strings, combiner equipment and inverter inputs.
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.

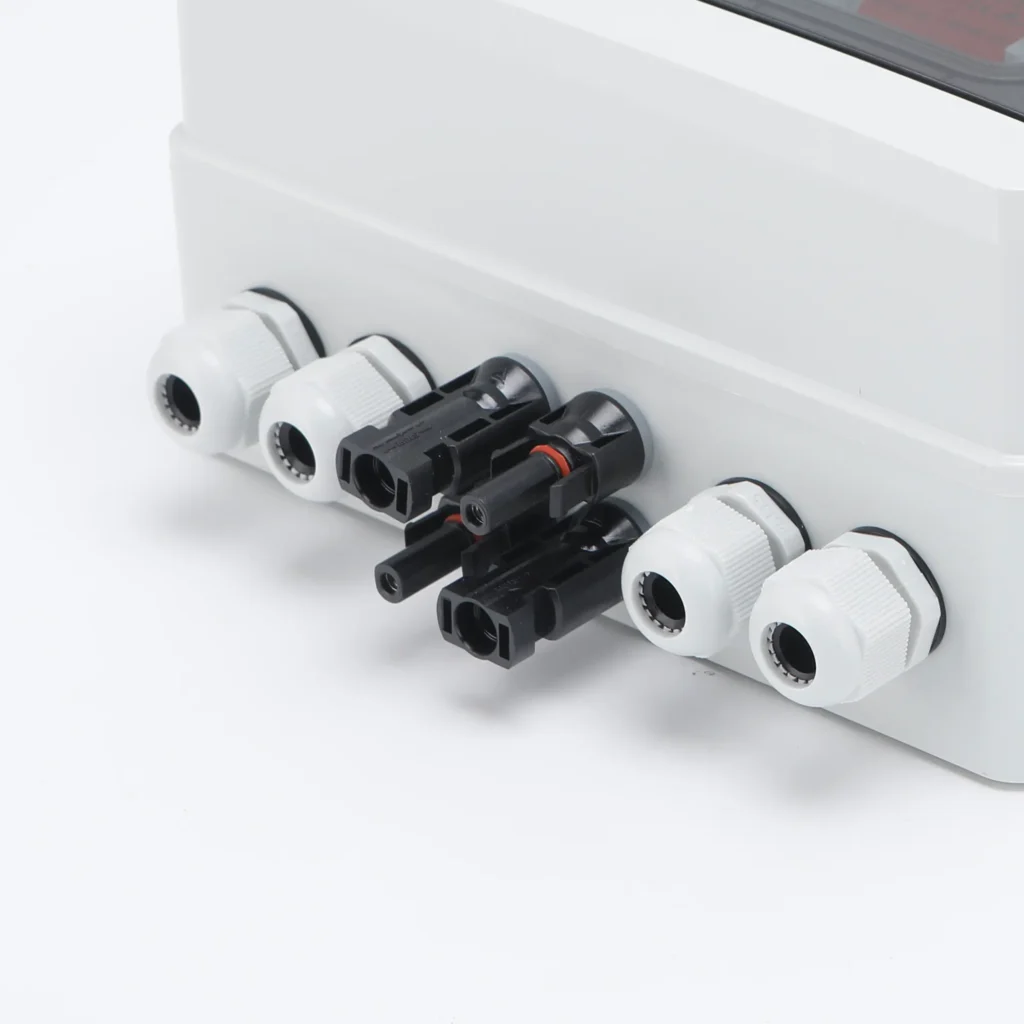

UH-PC-PM01 is intended for photovoltaic equipment that requires a fixed DC connector interface through a panel or enclosure wall, including PV combiner boxes, inverter housings, junction interfaces and other solar electrical equipment where detachable external PV wiring is required.
Installation
Installation Guidance
1. Prepare the equipment panel according to the UH-PC-PM01 dimensional drawing and the mechanical requirements of the enclosure.
2. Insert the threaded connector body through the panel opening and secure the mounting hardware without damaging the housing or sealing surfaces.
3. Select the correct crimp contact for the installed 2.5, 4 or 6 mm² conductor.
4. Strip and crimp the conductor using tooling matched to the selected contact size.
5. Insert the terminated contact into the connector housing until it is fully retained.
6. Mate the external connector completely and verify that the locking interface is fully engaged.
7. Check conductor retention, polarity and panel mounting before energizing the photovoltaic circuit.
Important Notes
IP67 protection applies when the connector is correctly installed and fully mated with matching UH-PC-PM01 components.
FAQ
Frequently Asked Questions
What is a panel-mount solar connector?
A panel-mount solar connector creates a detachable photovoltaic electrical interface through an equipment panel or enclosure. One connector body is mechanically fixed to the panel while a corresponding connector mates from the external side.
What conductor sizes does UH-PC-PM01 support?
UH-PC-PM01 supports 2.5, 4 and 6 mm² photovoltaic conductors and is rated at 30A and 1000V DC.
What mounting thread does UH-PC-PM01 use?
The connector housing uses an M11.8 × 1.5 threaded panel-mount section. Refer to the product dimensional drawing when preparing the enclosure interface.
Are both pin and socket versions available?
Yes. UH-PC-PM01 is supplied as a connector system with corresponding pin-contact and socket-contact versions for the required panel interface.
Are silver-plated contacts available?
Yes. Tin-plated copper contacts are standard, with silver-plated copper contacts available on request.
Is UH-PC-PM01 suitable for outdoor equipment?
The connector is rated IP67 when correctly installed and fully mated. The complete enclosure design and panel sealing arrangement should also be selected for the required outdoor environment.
