Select UH-PC-MC05 according to both the PV conductor cross-section and connector current rating. For 2000V applications, the complete PV cable, connector and connected equipment must also be suitable for the system voltage.
Solar Connector

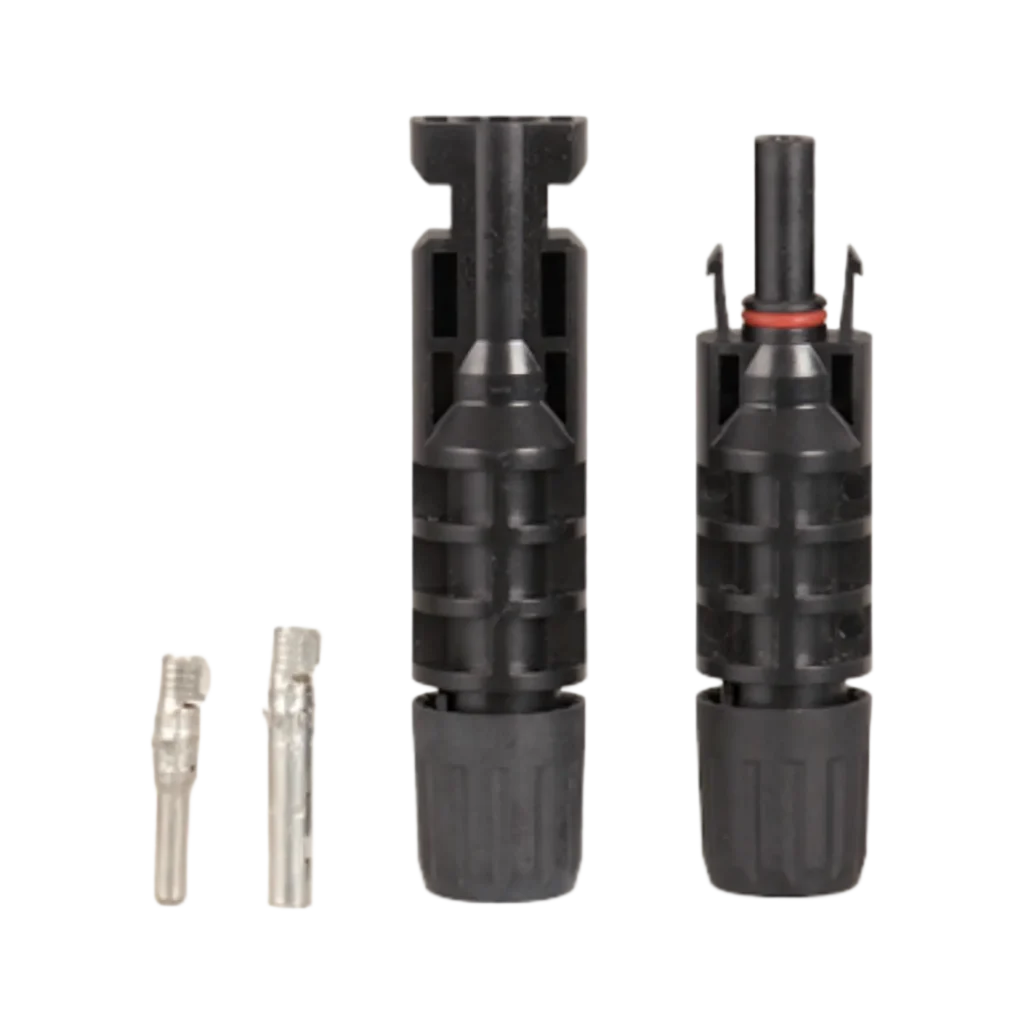

2000V Solar Connector for High-Voltage PV Systems – UH-PC-MC05
Model UH-PC-MC05
UH-PC-MC05 is a 2000V DC solar connector for high-voltage photovoltaic cable connections, available in 30A / 2.5 mm², 45A / 4 mm², 50A / 6 mm² and 60A / 10 mm² configurations. The connector uses field crimp termination, PC insulation and IP67 protection when correctly assembled and mated.
- 2000V DC Rating
- Up to 60A
- Up to 10 mm²
Rated Voltage
2000V DC
Rated Current
30A ~ 60A
Cable Size
2.5 ~ 16 mm² / 14 ~ 6 AWG
Termination Method
Crimp
Degree of Protection
IP67, correctly assembled and mated
Ambient Temperature
-40°C to +85°C
2000V DC is limited to customized products for specific countries and regions.
Overview
Product Overview
UH-PC-MC05 is a 2000V DC solar connector designed for high-voltage photovoltaic cable-to-cable connections. Available configurations include 30A for 2.5 mm² PV cable, 45A for 4 mm², 50A for 6 mm² and 60A for 10 mm² conductors.
Compared with the UH-PC-MC04, UH-PC-MC05 extends the connector platform to a 2000V DC rated system voltage while retaining field crimp termination and IP67 protection when correctly assembled and mated. Tin-plated copper contacts are standard, with silver-plated copper contacts available on request.
Features
Key Product Features
2000V DC Rating
Up to 60A
Up to 10 mm²
2000V DC System Rating
UH-PC-MC05 provides a 2000V DC connector platform for photovoltaic systems designed around higher DC string voltages.
Four Current Configurations
Available contact configurations cover 30A, 45A, 50A and 60A requirements with conductor sizes from 2.5 to 10 mm².
10 mm² / 60A Configuration
The largest UH-PC-MC05 configuration uses a 10 mm² PV conductor with a 60A connector rating for higher-current DC connections.
Field Crimp Termination
Crimp termination allows the contact configuration to be matched to the required conductor before field assembly.
IP67 Mated Protection
Correct assembly and complete mating provide IP67 environmental protection for applicable outdoor photovoltaic installations.
Two Contact Finishes
Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 2000V DC |
| Rated Current | 30A ~ 60A |
| Configuration | Inline Connector |
| Cable Size | 2.5 ~ 16 mm² / 14 ~ 6 AWG |
| 30A Configuration | 2.5 mm² PV Cable |
| 45A Configuration | 4 mm² PV Cable |
| 50A Configuration | 6 mm² PV Cable |
| 60A Configuration | 10 mm² PV Cable |
Cable & Contact
| Parameter | Value |
|---|---|
| Termination Method | Crimp |
| Contact Material | Tin-Plated Copper |
| Optional Contact Finish | Silver-Plated |
Environmental & Mechanical
| Parameter | Value |
|---|---|
| Degree of Protection | IP67, correctly assembled and mated |
| Ambient Temperature | -40°C to +85°C |
| Insulation Material | PC |
| Housing Color | Black |
| Connection Structure | Locking Connector Housing |
Selection
Choose the Correct UH-PC-MC05 Configuration
| Rated Current | PV Conductor | Approx. AWG | Rated Voltage | Standard Contact | Optional Contact |
|---|---|---|---|---|---|
| 30A | 2.5 mm² | 14 AWG | 2000V DC | Tin-Plated Copper | Silver-Plated Copper |
| 45A | 4 mm² | 12 AWG | 2000V DC | Tin-Plated Copper | Silver-Plated Copper |
| 50A | 6 mm² | 10 AWG | 2000V DC | Tin-Plated Copper | Silver-Plated Copper |
| 60A | 10 mm² | 8 AWG | 2000V DC | Tin-Plated Copper | Silver-Plated Copper |
Mechanical Data
Dimensions
UH-PC-MC05 uses an extended connector housing designed for the 2000V platform, with separate contact geometries for the 30A, 45A, 50A and 60A configurations. Refer to the dimensional drawing for detailed housing and crimp contact dimensions before installation.
| Dimension | Value |
|---|---|
| Housing Length – Side A | 84.9mm |
| Housing Length – Side B | 88mm |
| Assembly Length Shown | 150.4mm |
| Units | mm |
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-PC-MC05 is intended for high-voltage photovoltaic DC wiring where a 2000V-rated connector system is specified, particularly in utility-scale and large commercial PV architectures designed to operate above conventional 1500V system levels.
Installation
Installation Guidance
1. Confirm that the complete PV circuit, cable and connected equipment are designed for the specified 2000V DC system voltage.
2. Select the matching connector configuration: 2.5 mm² / 30A, 4 mm² / 45A, 6 mm² / 50A or 10 mm² / 60A.
3. Prepare the PV conductor without damaging the conductor strands or the cable jacket required for sealing.
4. Insert the conductor into the corresponding crimp contact and complete the termination using tooling suitable for the selected conductor and terminal.
5. Insert the terminated contact fully into the connector housing until it is retained.
6. Assemble and tighten the cable sealing section, then mate the corresponding connector halves completely.
7. Verify polarity, contact retention, connector locking and complete mating before energizing the photovoltaic circuit.
Important Notes
2000V DC is limited to customized products for specific countries and regions.
FAQ
Frequently Asked Questions
What cable sizes does UH-PC-MC05 support?
UH-PC-MC05 is available for 2.5, 4, 6 and 10 mm² photovoltaic conductors, corresponding to 30A, 45A, 50A and 60A connector configurations.
What is the difference between UH-PC-MC04 and UH-PC-MC05?
UH-PC-MC04 is a 1500V high-current solar connector supporting conductor sizes up to 16 mm². UH-PC-MC05 is a separate high-voltage platform rated at 2000V DC, with configurations up to 60A / 10 mm².
Which version should I use for a 10 mm² PV cable?
The 10 mm² UH-PC-MC05 configuration is rated at 60A. Connector selection should still be coordinated with cable ampacity, installation conditions and the electrical design of the complete photovoltaic circuit.
Are silver-plated contacts available?
Yes. Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.
Is UH-PC-MC05 covered by IEC 62852?
IEC 62852 covers photovoltaic DC connectors with rated voltages up to 1500V DC. Documentation and approval requirements for a 2000V PV connector therefore depend on the applicable project, market and certification scheme.
Can UH-PC-MC05 be used as a replacement for a 1500V connector?
Voltage rating alone does not establish connector compatibility. Use matched components from the same connector family and verify the cable, current rating, mechanical interface and complete PV system requirements.
