Select the branch topology according to the number of photovoltaic inputs that need to be combined into one parallel connection. When multiple strings are paralleled, the common branch conductor and downstream equipment must be sized for the resulting combined current.
Solar Connector
1000V Y-Branch Solar Connector – 2-to-1, 3-to-1 & 4-to-1 – UH-PC-YB01
Model UH-PC-YB01

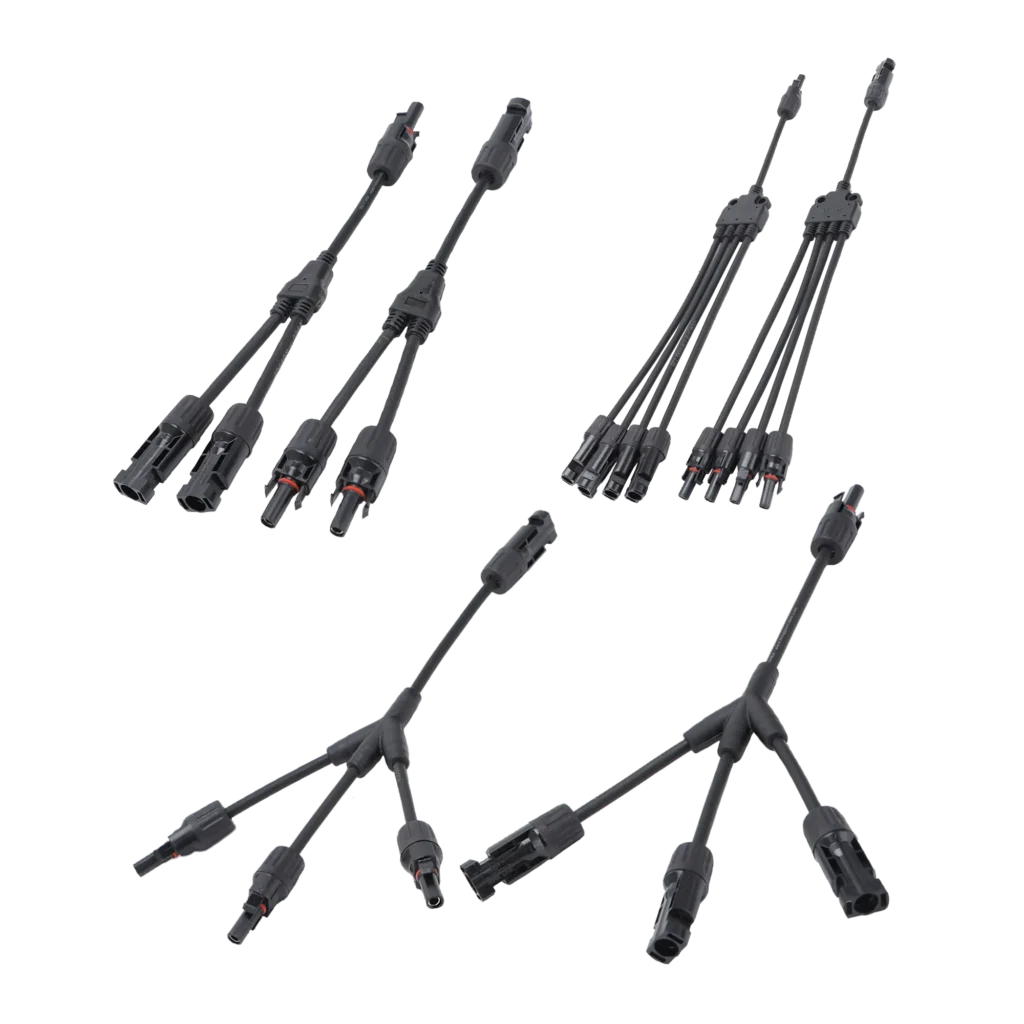

UH-PC-YB01 is a 1000V DC Y-branch solar connector series for parallel photovoltaic string connections. Available in 2-to-1, 3-to-1 and 4-to-1 configurations, it combines multiple PV inputs into a common branch connection using integrated cable leads, locking connector interfaces and IP67 protection when correctly mated.
- 2 / 3 / 4-to-1 Options
- 1000V DC Rating
- IP67 Mated Protection
Rated Voltage
1000V DC
Connection Function
Parallel PV Branching
Available Topologies
2-to-1 / 3-to-1 / 4-to-1
Insulation Material
PC
Degree of Protection
IP67, correctly mated
Ambient Temperature
-40°C to +85°C
Parallel PV connections increase the current on the common branch; size the downstream cable and equipment for the combined circuit current.
Overview
Product Overview
UH-PC-YB01 is a 1000V DC Y-branch solar connector series for parallel photovoltaic string connections. Available in 2-to-1, 3-to-1 and 4-to-1 configurations, it combines multiple PV inputs into a common branch connection using integrated cable leads, locking connector interfaces and IP67 protection when correctly mated.
Features
Key Product Features
2 / 3 / 4-to-1 Options
1000V DC Rating
IP67 Mated Protection
Three Branch Configurations
UH-PC-YB01 is available in 2-to-1, 3-to-1 and 4-to-1 layouts for different photovoltaic parallel-connection requirements.
Parallel PV Connection
The branch assembly combines multiple photovoltaic inputs into a common electrical branch for parallel PV string or module wiring.
Integrated Cable Assembly
Factory-assembled cable leads connect the branch junction to the mating solar connector interfaces, reducing the number of separate field-assembled branch components.
Locking Connector Interfaces
Each branch terminates in a locking solar connector interface for secure mating with the corresponding PV connection.
IP67 Mated Protection
Correct and complete connector mating provides IP67 environmental protection for applicable outdoor photovoltaic wiring.
Two Contact Finishes
Tin-plated copper contacts are supplied as standard, while silver-plated copper contacts are available on request.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| Connection Function | Parallel PV Branching |
| Available Topologies | 2-to-1 / 3-to-1 / 4-to-1 |
| Configuration | Y-Branch Connector |
| Cable Size | 4 mm² / 12 AWG |
Materials & Construction
| Parameter | Value |
|---|---|
| Contact Material | Tin-Plated Copper |
| Optional Contact Finish | Silver-Plated |
| Insulation Material | PC |
| Branch Construction | Interated Cable Assembly |
| Housing Colar | Black |
Environmental Characteristics
| Parameter | Value |
|---|---|
| Degree of Protection | IP67, correctly mated |
| Ambient Temperature | -40°C to +85°C |
| Installation Environment | Outdoor Photovoltaic Wiring |
Selection
Choose the Correct UH-PC-YB01 Branch Configuration
| Variant | Topology | PV Inputs | Common Branch | Rated Voltage |
|---|---|---|---|---|
| UH-PC-YB01-2T1 | 2-to-1 | 2 | 1 | 1000V DC |
| UH-PC-YB01-3T1 | 3-to-1 | 3 | 1 | 1000V DC |
| UH-PC-YB01-4T1 | 4-to-1 | 4 | 1 | 1000V DC |
Mechanical Data

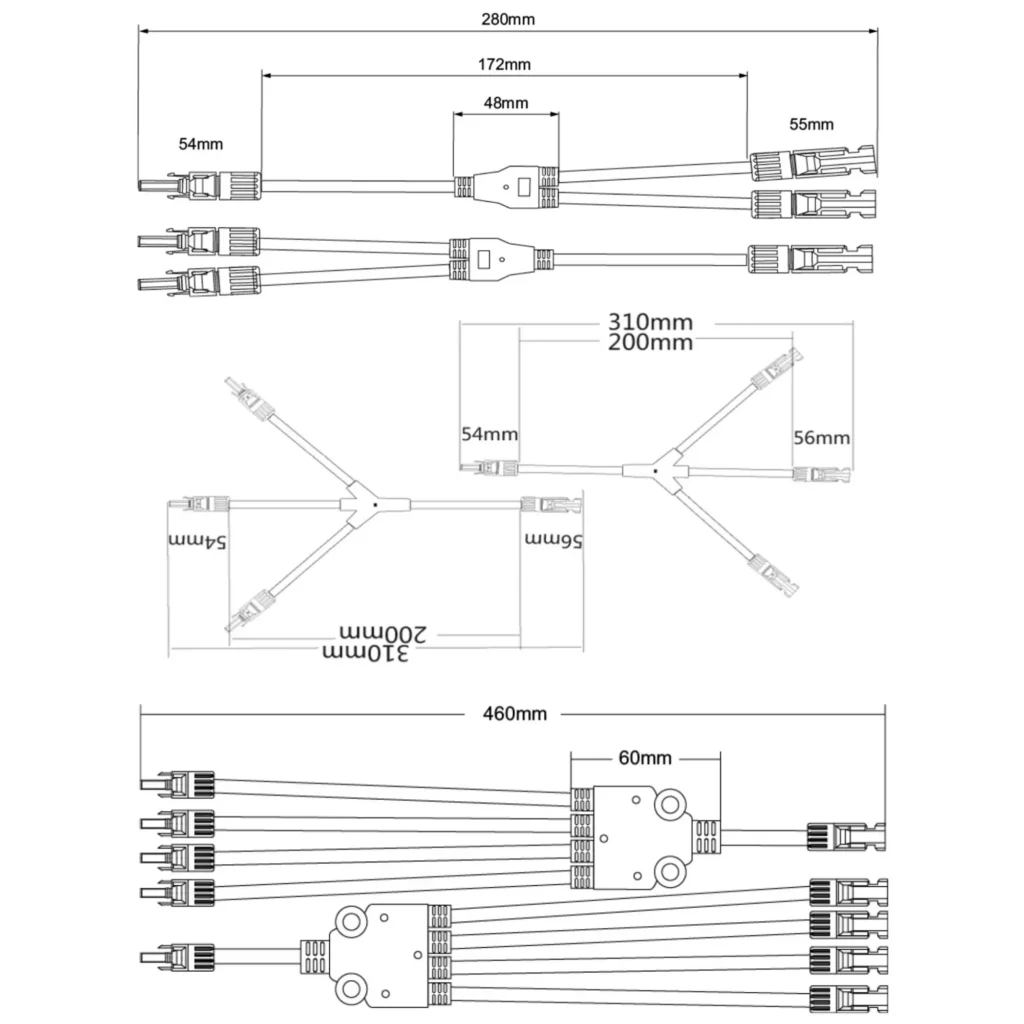

Dimensions
UH-PC-YB01 uses different cable and junction geometries for the 2-to-1, 3-to-1 and 4-to-1 configurations. Refer to the corresponding dimensional drawing when selecting a branch version or planning cable routing within the PV array.
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-PC-YB01 is intended for photovoltaic systems requiring multiple module or string connections to be combined in parallel. The 2-to-1 version suits simple two-branch connections, while the 3-to-1 and 4-to-1 versions provide higher branch counts for larger PV array layouts. Final conductor and circuit current sizing should account for the combined current on the common branch.
Installation
Installation Guidance
1. Identify the number of photovoltaic inputs that need to be connected in parallel and select the 2-to-1, 3-to-1 or 4-to-1 UH-PC-YB01 configuration.
2. Confirm the polarity of every PV input before making any branch connections.
3. Isolate the photovoltaic circuit before mating or disconnecting the branch connector assembly.
4. Connect each PV input to the corresponding branch interface and ensure that every connector is fully inserted and locked.
5. Connect the common branch output to the downstream PV cable or equipment connection.
6. Verify that the common branch conductor and downstream circuit are suitable for the combined current of all connected PV inputs.
7. Check polarity, connector locking and cable routing before energizing the photovoltaic circuit. Do not connect or disconnect the branch assembly while under electrical load.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.
1000V Inline Fuse Solar Connector for 10 × 38 mm PV Fuse – UH-PC-MF01
UH-PC-MF01 is a 1000V DC inline fuse solar connector designed to add replaceable overcurrent protection directly into photovoltaic string wiring. The connector accommodates a 10 × 38 mm PV fuse link and combines an Ø4 mm contact system, PC insulated housing and IP67 protection when correctly assembled and mated.
View Product
1000V Inline Solar Diode Connector for Reverse-Current Protection – UH-PC-MD01
UH-PC-MD01 is a 1000V DC inline solar diode connector designed to block reverse current in photovoltaic wiring. Available in 10A, 15A, 20A and 30A versions, the integrated diode assembly provides a compact plug-in solution for PV strings and parallel solar circuits requiring directional current control.
View Product
1000V Solar Connector for 2.5 – 6 mm² PV Cable – UH-PC-MC01
UH-PC-MC01 is a 1000V DC solar connector for field-assembled PV cable connections, available in 30A / 2.5 mm², 45A / 4 mm² and 50A / 6 mm² configurations. It uses crimp contacts, PC insulation and IP67 protection when correctly assembled and mated for outdoor photovoltaic wiring.
View Product
Compact 1000V Solar Connector for 2.5, 4 & 6 mm² PV Cable – UH-PC-MC02
UH-PC-MC02 is a compact 1000V DC solar connector for field-assembled photovoltaic cable connections. It is available in 30A / 2.5 mm², 45A / 4 mm² and 50A / 6 mm² configurations, combining crimp termination, PC insulation and IP67 protection when correctly assembled and mated.
View ProductImportant Notes
Parallel PV connections increase the current on the common branch; size the downstream cable and equipment for the combined circuit current.
FAQ
Frequently Asked Questions
What branch configurations are available for UH-PC-YB01?
UH-PC-YB01 is available in 2-to-1, 3-to-1 and 4-to-1 configurations for combining multiple photovoltaic connections into a common parallel branch.
What is the difference between the three UH-PC-YB01 variants?
UH-PC-YB01-2T1 combines two PV inputs, UH-PC-YB01-3T1 combines three inputs, and UH-PC-YB01-4T1 combines four inputs into one common branch connection.
Can I use the 4-to-1 version as four separate products?
No. The 4-to-1 configuration is treated as one complete branch topology. The corresponding polarity arrangements belong to the same UH-PC-YB01-4T1 product configuration rather than separate models.
Does a Y-branch connector increase the circuit current?
Connecting PV strings in parallel can increase the current carried by the common branch. The downstream conductor, connector and protection equipment must therefore be selected for the combined current of the connected strings.
Is a Y-branch connector the same as an inline fuse connector?
No. A Y-branch connector combines multiple PV connections in parallel, while an inline fuse connector provides overcurrent protection. See UH-PC-MF01 – 1000V Inline Fuse Solar Connector for the fuse-protected product.
Can a blocking diode be used with parallel PV branches?
Where the PV system design requires reverse-current blocking, an inline diode may be incorporated into the relevant branch circuit. See UH-PC-MD01 – 1000V Solar Diode Connector for the UHCCY diode connector option.
