UH-DG-FH03 accepts a 10 × 65 mm gPV fuse link. Select the fuse current rating according to the PV module maximum series fuse rating, string operating current, conductor capacity and complete 1500V DC protection design. The holder's 35A rating defines the holder limit and does not mean every installation should use a 35A fuse.
DC Fuse

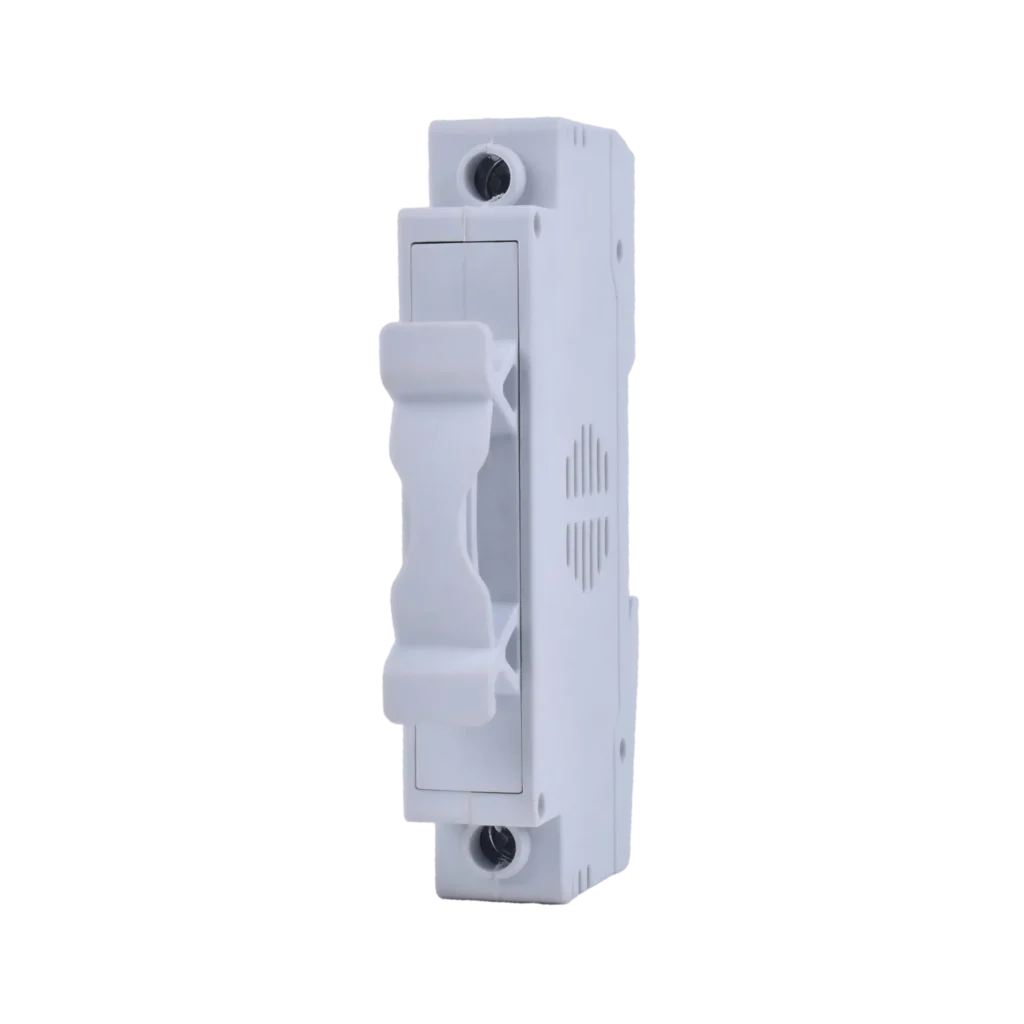

1500V DC PV Fuse Holder for 10 × 65 mm Fuse – UH-DG-FH03
Model UH-DG-FH03
UH-DG-FH03 is a 1500V DC photovoltaic fuse holder designed for 10 × 65 mm gPV fuse links. Rated at 35A, the single-pole holder uses a removable fuse carrier and DIN-rail mounting for integration into PV combiner boxes, string protection panels and other high-voltage DC protection assemblies.
- 1500V DC / 35A
- 10 × 65 mm Fuse
- Removable Carrier
Rated Voltage
1500V DC
Rated Current
1 - 35A
Fuse Size
10 × 65 mm
Compatible Fuse Class
gPV
Pole
1P
Mounting Method
DIN Rail
Use only correctly rated 10 × 65 mm gPV fuse links and isolate the DC circuit before removing the fuse carrier.
Overview
Product Overview
UH-DG-FH03 is a single-pole 1500V DC fuse holder designed around the 10 × 65 mm photovoltaic fuse format. With a 35A holder rating and DIN-rail mounting, it provides a compact replaceable-fuse interface for PV string protection inside combiner boxes and other DC protection equipment.
The removable fuse carrier allows the gPV fuse link to be accessed independently of the installed base after the DC circuit has been safely isolated. Compared with the longer 10 × 85 mm UHCCY fuse-holder platform, UH-DG-FH03 uses the shorter 10 × 65 mm fuse format while increasing the holder rating to 35A.
Features
Key Product Features
1500V DC / 35A
10 × 65 mm Fuse
Removable Carrier
1500V DC PV Platform
UH-DG-FH03 is designed for photovoltaic DC protection applications with a fuse-holder rated voltage of 1500V DC.
35A Holder Rating
The holder is rated at 35A, while the installed fuse-link current rating is selected separately according to the protected photovoltaic circuit.
10 × 65 mm Fuse Format
The fuse carrier accepts cylindrical 10 × 65 mm gPV fuse links used for photovoltaic string and array protection.
Removable Fuse Carrier
The fuse is installed inside a pull-out carrier that can be removed from the fixed holder base after the DC circuit has been safely isolated.
DIN-Rail Installation
The modular single-pole housing is designed for DIN-rail installation inside PV combiner boxes and DC protection enclosures.
Ventilated Housing
Ventilation openings are integrated into the housing around the fuse compartment to support thermal management during normal operation.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 1500V DC |
| Rated Current | 1 - 35A |
| Fuse Size | 10 × 65 mm |
| Compatible Fuse Class | gPV |
| Pole | 1P |
| Application | Photovoltaic DC Protection |
Installation & Mechanical
| Parameter | Value |
|---|---|
| Mounting Method | DIN Rail |
| Fuse Carrier | Removable / Pull-Out |
| Fuse Replacement | Replaceable Fuse Link |
| Housing Construction | Ventilated Modular Housing |
| Wire Range | AWG 20-8 / 0.52-8.4 mm² |
| Housing Color | White |
Product Marking
| Parameter | Value |
|---|---|
| Supplier Model | R1065B |
| Rated Voltage Marking | DC 1500V |
| Rated Current Marking | 35A |
| Fuse Size Marking | 10 × 65 mm |
| Application Marking | gPV |
| Standard Marking | IEC 60947-3 / GB/T 14048.3 |
Selection
Select the Correct Fuse for UH-DG-FH03
| Parameter | UH-DG-FH01 | UH-DG-FH02 | UH-DG-FH03 |
|---|---|---|---|
| Voltage | 1000V DC | 1500V DC | 1500V DC |
| Holder Current | 30A | 32A | 35A |
| Fuse Size | 10 × 38 mm | 10 × 85 mm | 10 × 65 mm |
| Pole | 1 / 2 / 3 / 4 P | 1P | 1P |
| Carrier | Removable | Removable | Removable |
| Mounting | DIN Rail | DIN Rail | DIN Rail |
| Main Positioning | Long 10×85 fuse platform | Compact 10×65 fuse platform |
Applications
Where This Product Is Used
PV Combiner Boxes
Connector assemblies support DC cable connections between PV strings, combiner equipment and inverter inputs.
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-DG-FH03 is intended for 1500V photovoltaic string protection using 10 × 65 mm gPV fuse links. Typical applications include PV combiner boxes, string protection panels, inverter DC input protection and other DIN-rail mounted solar DC protection equipment. Fuse-link current should be selected according to the PV module maximum series fuse rating and complete circuit design.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.
1500V DC gPV Fuse 10 × 65 mm, 1A–35A – UH-DG-FU03
UH-DG-FU03 is a 1500V DC gPV fuse series in the 10 × 65 mm cylindrical format for photovoltaic string and array protection. Sixteen current ratings are available from 1A to 35A, allowing the fuse link to be selected according to PV module characteristics, string current and the required overcurrent protection design.
View ProductImportant Notes
Use only correctly rated 10 × 65 mm gPV fuse links and isolate the DC circuit before removing the fuse carrier.
FAQ
Frequently Asked Questions
What fuse size does UH-DG-FH03 use?
UH-DG-FH03 is designed for 10 × 65 mm cylindrical gPV fuse links.
What is the rated current of UH-DG-FH03?
The fuse holder is rated at 35A. The installed fuse link may have a lower current rating and should be selected according to the photovoltaic circuit protection requirements.
What is the difference between UH-DG-FH02 and UH-DG-FH03?
UH-DG-FH02 – 1500V DC PV Fuse Holder uses the longer 10 × 85 mm fuse format and has a 32A holder rating. UH-DG-FH03 uses a more compact 10 × 65 mm fuse format and is rated at 35A.
What current ratings are available for 10 × 65 mm PV fuses?
1500V DC 10 × 65 mm gPV fuse systems are available in multiple current ratings up to 35A. The actual UHCCY fuse range should be selected from the confirmed UH-DG-FU03 supply configuration.
