DC Fuse

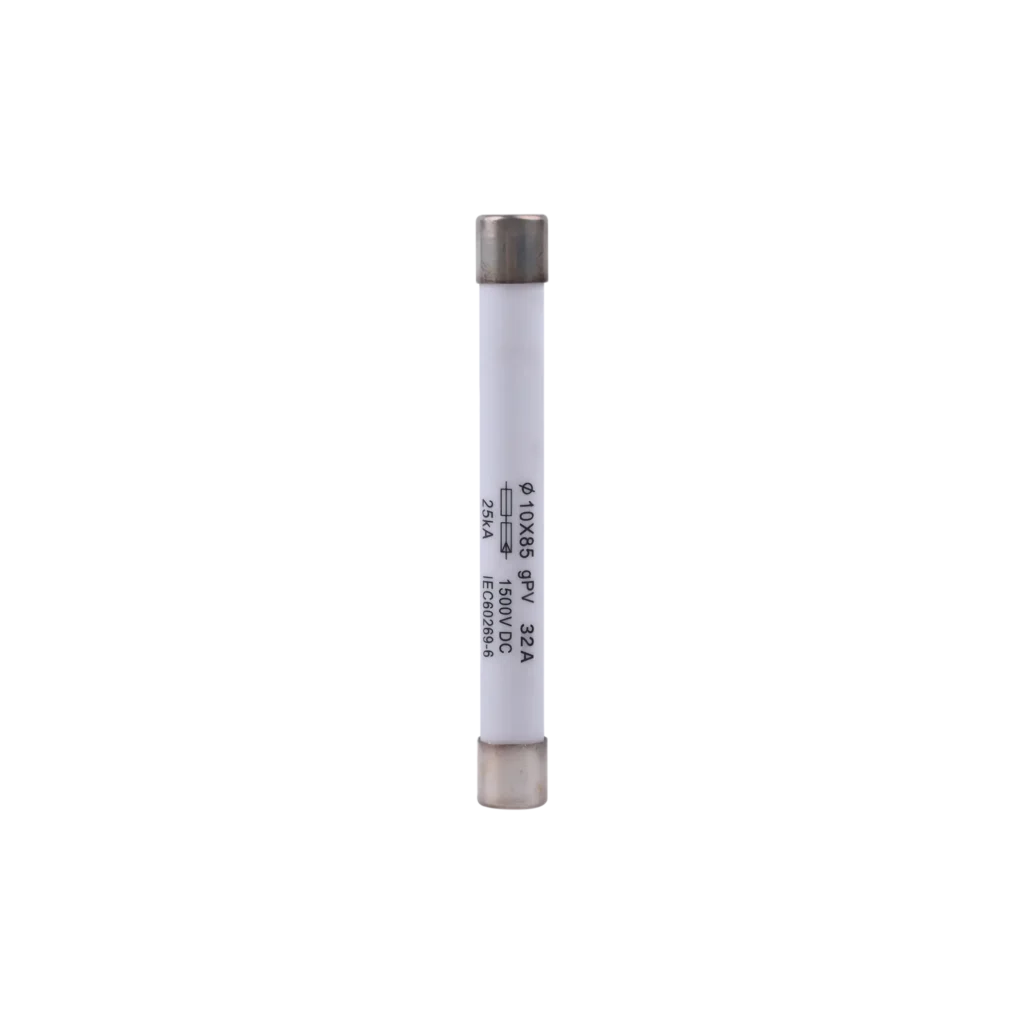

1500V DC gPV Fuse 10 × 85 mm – UH-DG-FU02
Model UH-DG-FU02
The matching UH-DG-FH02 fuse holder accommodates 10×85 fuse links. Please select the appropriate fuse rating based on the maximum series fuse rating of the PV modules, the string current, and the overall protection design.
- 1500V DC Rating
- 10 × 85 mm gPV
- 1-32A Current Ratings
Rated Voltage
1500V DC
Rated Current
1 - 32A
Utilization Category
gPV
Application
Photovoltaic String Protection
Fuse Type
Cylindrical Fuse Link
Fuse Size
10 × 85 mm
Select the fuse rating according to the PV string design and never replace the fuse while the DC circuit is under load.
Features
Key Product Features
1500V DC Rating
10 × 85 mm gPV
1-32A Current Ratings
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 1500V DC |
| Rated Current | 1 - 32A |
| Utilization Category | gPV |
| Application | Photovoltaic String Protection |
| Voltage Type | DC |
| Fuse Type | Cylindrical Fuse Link |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Fuse Size | 10 × 85 mm |
| Nominal Diameter | 10 mm |
| Nominal Length | 85 mm |
| Mounting | Compatible 10 × 85 mm Fuse Holder |
| Replaceable | Yes |
Construction
| Parameter | Value |
|---|---|
| Body Type | Ceramic Cylindrical Fuse Body |
| End Caps | Metal Ferrule |
| Product Format | Cartridge Fuse Link |
Applications
Where This Product Is Used
PV Combiner Boxes
Connector assemblies support DC cable connections between PV strings, combiner equipment and inverter inputs.
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.
1500V DC PV Fuse Holder for 10 × 85 mm Fuse – UH-DG-FH02
Matching 10 × 85 mm gPV fuse links are available in current ratings from 1A to 32A. Select the fuse rating according to the photovoltaic module maximum series fuse rating, string current and complete protection design.
