UH-DG-FH02 uses a 10 × 85 mm gPV fuse link. Select the fuse-link current rating according to the PV module maximum series fuse rating, expected string current, conductor capacity and complete 1500V DC protection design. The holder's 32A rating defines the holder limit and does not determine the required fuse amperage.
DC Fuse
1500V DC PV Fuse Holder for 10 × 85 mm Fuse – UH-DG-FH02
Model UH-DG-FH02
Matching 10 × 85 mm gPV fuse links are available in current ratings from 1A to 32A. Select the fuse rating according to the photovoltaic module maximum series fuse rating, string current and complete protection design.
- 1500V DC / 32A
- 10 × 85 mm Fuse
- 35 mm DIN Rail
Rated Voltage
1500V DC
Rated Current
1 - 32A
Fuse Size
10 × 85 mm
Compatible Fuse Class
gPV
Pole
1P
Mounting Method
35 mm DIN Rail
Use only correctly rated 10 × 85 mm gPV fuse links and never remove the fuse carrier while the DC circuit is under load.
Overview
Product Overview

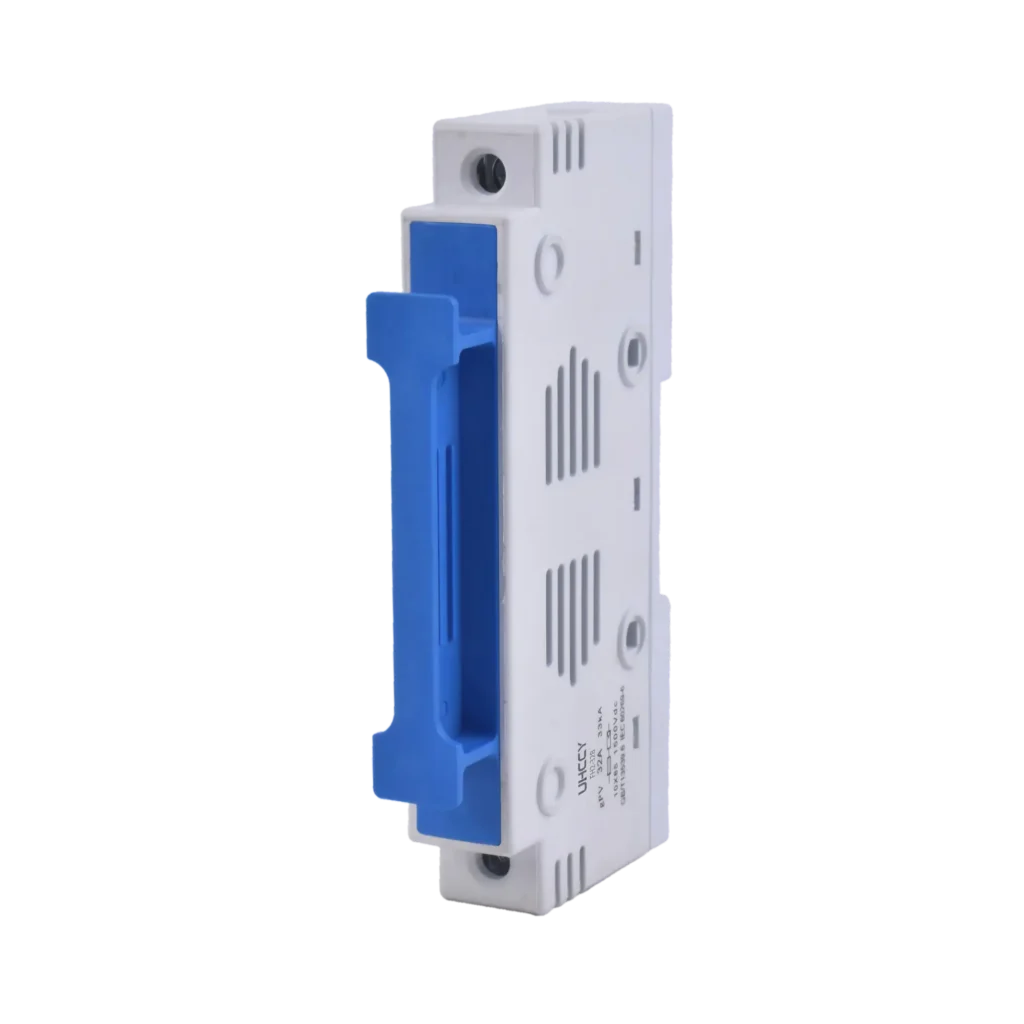

UH-DG-FH02 is a single-pole 1500V DC fuse holder designed for 10 × 85 mm photovoltaic fuse links. With a 32A holder rating and 35 mm DIN-rail mounting, it provides a modular fuse interface for PV string protection inside combiner boxes, DC distribution panels and related solar protection equipment.
The removable fuse carrier allows the 10 × 85 mm fuse link to be accessed independently of the permanently mounted base, simplifying fuse replacement after the DC circuit has been safely isolated. The ventilated housing is designed for high-voltage photovoltaic protection applications where compact DIN-rail installation is required.
Features
Key Product Features
1500V DC / 32A
10 × 85 mm Fuse
35 mm DIN Rail
1500V DC PV Platform
UH-DG-FH02 is designed as a 1500V DC fuse-holder platform for high-voltage photovoltaic string and array protection applications.
10 × 85 mm Fuse Format
The holder accommodates 10 × 85 mm cylindrical photovoltaic fuse links, a common format for 1500V DC PV string protection.
32A Holder Rating
The fuse holder is rated at 32A. The current rating of the installed fuse link is selected separately according to the photovoltaic circuit protection design.

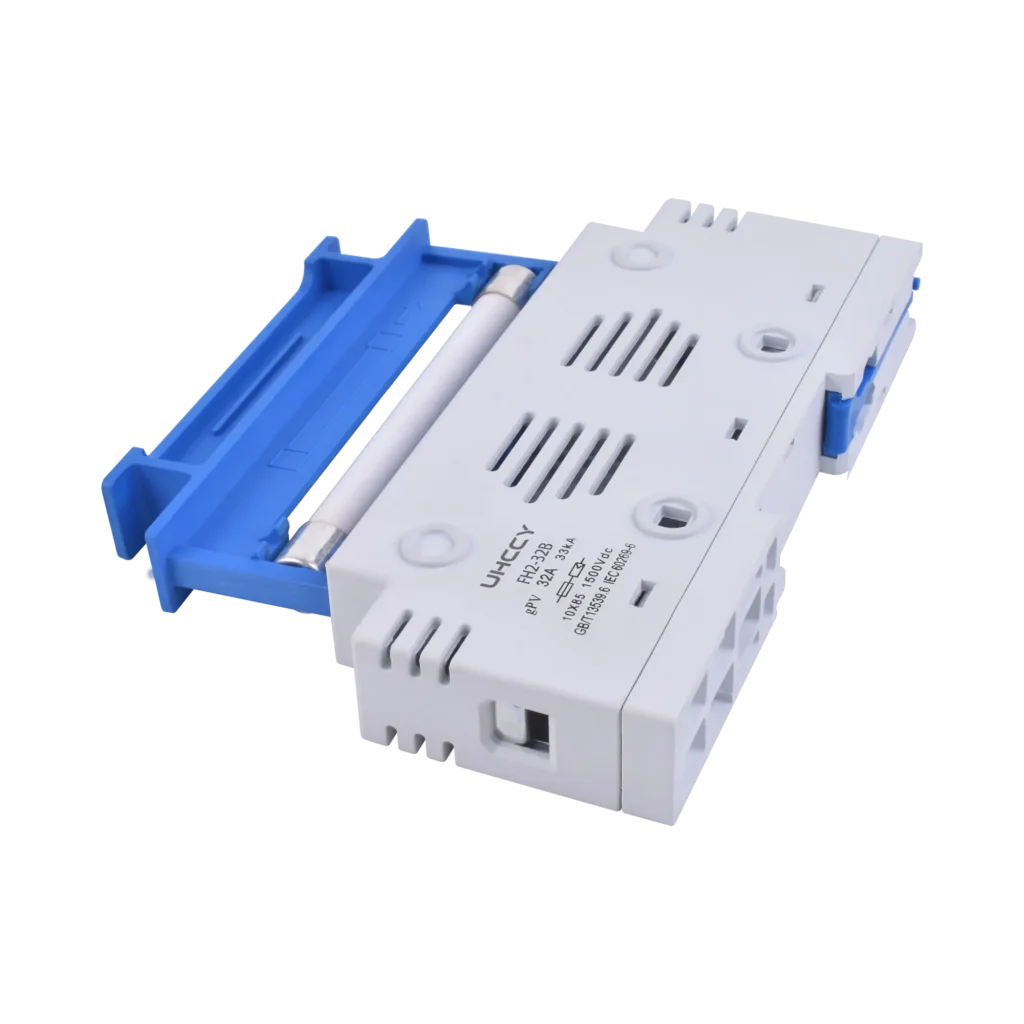

Removable Fuse Carrier
The fuse link is installed in a removable carrier, allowing the fuse to be replaced while the DIN-rail base remains installed inside the enclosure.
35 mm DIN-Rail Mounting
The single-pole housing mounts on a standard 35 mm DIN rail for integration into PV combiner boxes and DC distribution equipment.
Ventilated Housing
Multiple ventilation openings are integrated into the housing to support heat dissipation around the fuse chamber during normal operation.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 1500V DC |
| Rated Current | 1 - 32A |
| Fuse Size | 10 × 85 mm |
| Compatible Fuse Class | gPV |
| Pole | 1P |
| Wire Range | AWG 20-8 / 0.52-8.4 mm² |
| Application | Photovoltaic DC Protection |
Installation & Mechanical
| Parameter | Value |
|---|---|
| Mounting Method | 35 mm DIN Rail |
| Fuse Carrier | Removable / Pull-Out |
| Fuse Replacement | Replaceable Fuse Link |
| Housing Construction | Ventilated Modular Housing |
| Housing Color | White / Blue |
Product Marking
| Parameter | Value |
|---|---|
| Supplier Model Marking | FH-32B |
| Rated Voltage Marking | 1500V DC |
| Rated Current Marking | 32A |
| Fuse Size Marking | 10 × 85 mm |
| Capacity Marking | 33 kA |
| Standard Marking | IEC 60269-6 / GB/T 13539.6 |
Selection
Select the Correct Fuse for UH-DG-FH02
| Model | Value |
|---|---|
| Holder Model | UH-DG-FH02 / FH-32B |
| Rated Voltage | 1500V DC |
| Maximum Holder Current | 32A |
| Fuse Size | 10 × 85 mm |
| Fuse Class | gPV |
| Pole | 1P |
| Mounting | 35 mm DIN Rail |
| Fuse Current | Selected according to PV circuit design |
Mechanical Data
Dimensions
UH-DG-FH02 is designed around a 10 × 85 mm photovoltaic fuse link and standard 35 mm DIN-rail mounting. Overall housing dimensions should be taken from the final UHCCY dimensional drawing rather than estimated from product photography.
| Dimension | Value |
|---|---|
| Compatible Fuse Diameter | 10 mm |
| Compatible Fuse Length | 85 mm |
| DIN Rail | 35 mm |
Applications
Where This Product Is Used

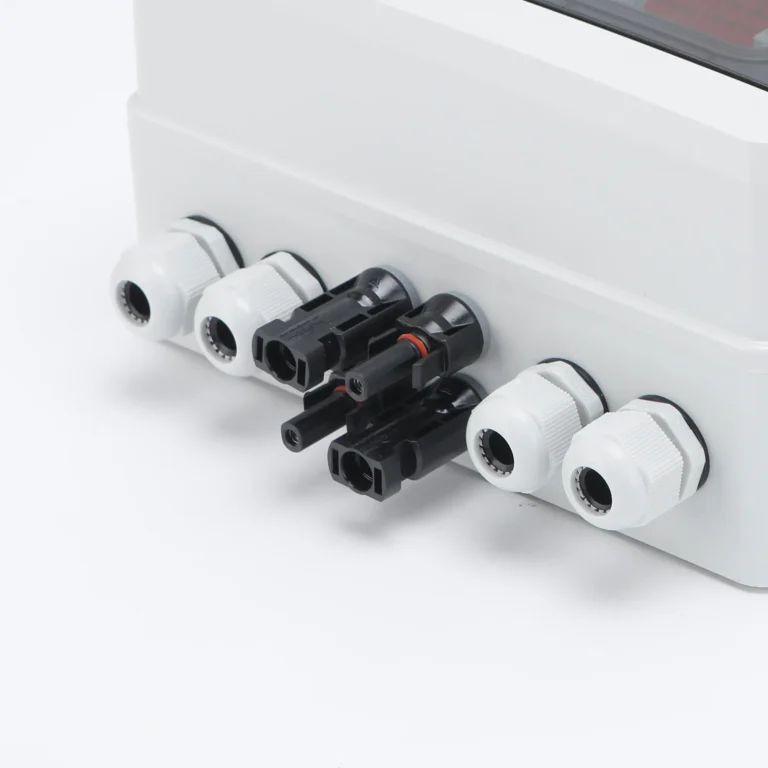

PV Combiner Boxes
Connector assemblies support DC cable connections between PV strings, combiner equipment and inverter inputs.
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-DG-FH02 is intended for 1500V DC photovoltaic protection assemblies using 10 × 85 mm gPV fuse links. Typical applications include PV combiner boxes, high-voltage string protection panels, inverter DC input protection and other DIN-rail mounted solar distribution equipment. The installed fuse rating should be selected according to the PV module and complete string protection design.
Installation
Installation Guidance
1. Fully isolate the photovoltaic DC circuit before installing or servicing the UH-DG-FH02 fuse holder.
2. Mount the fuse holder securely on a standard 35 mm DIN rail inside the electrical enclosure.
3. Select a 10 × 85 mm gPV fuse link with voltage and current ratings suitable for the 1500V DC photovoltaic circuit.
4. Insert the fuse link completely into the removable fuse carrier and confirm that both fuse ferrules are correctly seated in the carrier contacts.
5. Insert and close the fuse carrier completely before energizing the circuit.
6. Connect the DC conductors according to the photovoltaic circuit design and verify polarity before commissioning.
7. Check the DIN-rail mounting, terminal connections, fuse seating and carrier closure before energizing the circuit.
8. Never remove the fuse carrier or replace the fuse link while the DC circuit is under electrical load. Isolate the circuit before servicing.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.
1500V DC gPV Fuse 10 × 85 mm – UH-DG-FU02
The matching UH-DG-FH02 fuse holder accommodates 10×85 fuse links. Please select the appropriate fuse rating based on the maximum series fuse rating of the PV modules, the string current, and the overall protection design.
View ProductImportant Notes
Use only correctly rated 10 × 85 mm gPV fuse links and never remove the fuse carrier while the DC circuit is under load.
FAQ
Frequently Asked Questions
Is UH-DG-FH02 a fuse or a fuse holder?
UH-DG-FH02 is a 1500V DC fuse holder for replaceable 10 × 85 mm photovoltaic fuse links. The gPV fuse link is selected separately according to the protected PV circuit.
What fuse size does UH-DG-FH02 use?
UH-DG-FH02 is designed for 10 × 85 mm cylindrical gPV fuse links.
Is the fuse holder rated at 32A?
Yes. UH-DG-FH02 has a 32A holder rating. The installed fuse link may have a lower current rating and must be selected according to the photovoltaic string protection requirements.
What is the difference between UH-DG-FH01 and UH-DG-FH02?
UH-DG-FH01 – 1000V DC PV Fuse Holder uses 10 × 38 mm fuse links and is intended for 1000V DC systems. UH-DG-FH02 is the 1500V DC platform designed for the longer 10 × 85 mm gPV fuse format.
