Select the fuse-link current according to the PV module maximum series fuse rating, expected string current, conductor capacity and complete overcurrent-protection design. The available current range does not mean that a higher fuse rating provides better protection; the selected rating must match the electrical characteristics of the protected photovoltaic circuit.
DC Fuse
1500V DC gPV Fuse 10 × 65 mm, 1A–35A – UH-DG-FU03
Model UH-DG-FU03

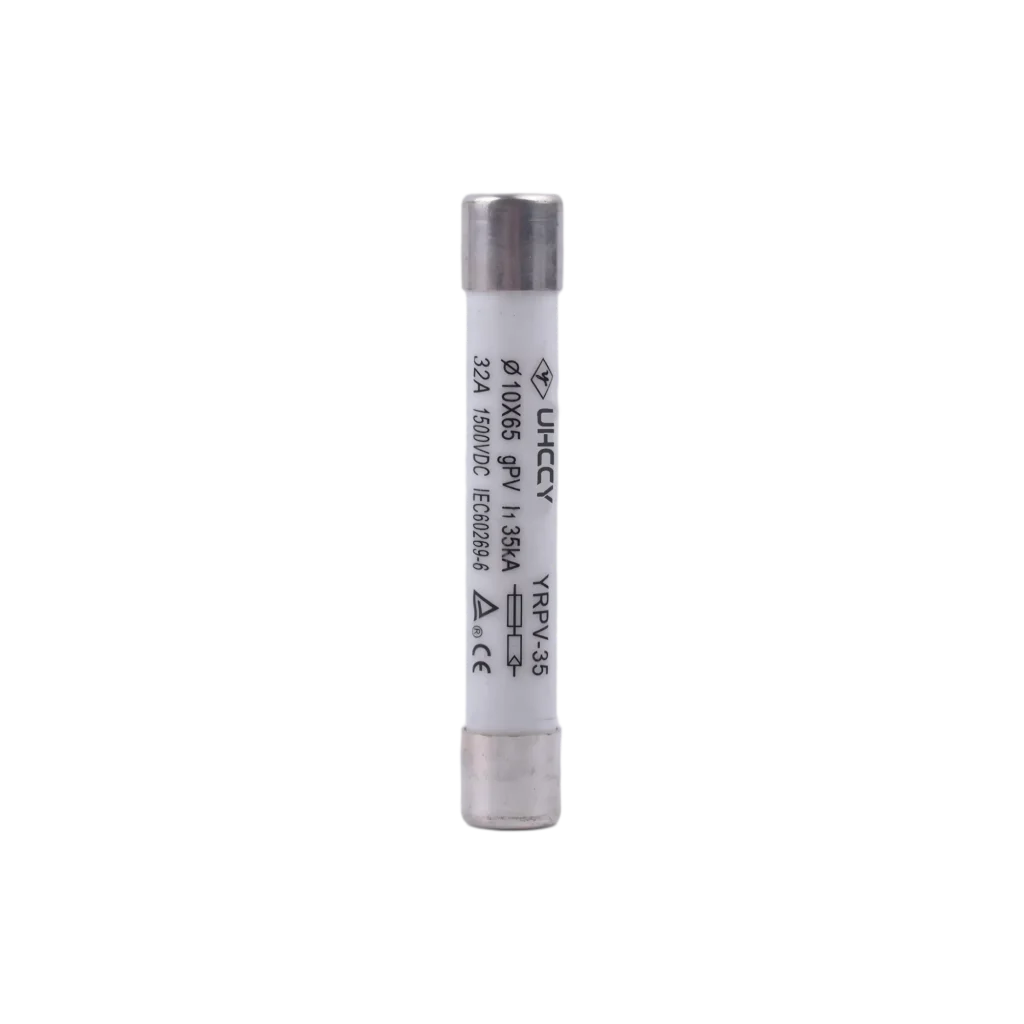

UH-DG-FU03 is a 1500V DC gPV fuse series in the 10 × 65 mm cylindrical format for photovoltaic string and array protection. Sixteen current ratings are available from 1A to 35A, allowing the fuse link to be selected according to PV module characteristics, string current and the required overcurrent protection design.
- 1500V DC Rating
- 10 × 65 mm gPV
- 1A–35A Options
Rated Voltage
1500V DC
Rated Current
1 - 35A
Utilization Category
gPV
Application
Photovoltaic String / Array Protection
Fuse Type
Cylindrical Fuse Link
Fuse Size
10 × 65 mm
Select the fuse rating according to the PV circuit design and never replace the fuse while the DC circuit is under load.
Overview
Product Overview
UH-DG-FU03 is a 1500V DC gPV fuse-link series designed for photovoltaic string and array overcurrent protection. The 10 × 65 mm platform covers selected ratings from 1A to 35A, including low-current versions for specialized PV circuits and higher-current versions up to 35A for modern solar string protection requirements.
The cylindrical cartridge format is designed for compatible 10 × 65 mm photovoltaic fuse holders, including the UHCCY 35A fuse-holder platform. A common mechanical size across all current ratings allows the required fuse amperage to be selected without changing the corresponding holder platform.
Features
Key Product Features
1500V DC Rating
10 × 65 mm gPV
1A–35A Options
1500V DC PV Protection
UH-DG-FU03 is designed for photovoltaic string and array protection in systems using a 1500V DC fuse rating.
Sixteen Current Ratings
The series covers 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A and 35A configurations.
gPV Fuse Classification
The gPV operating category is intended for photovoltaic fuse-link applications requiring protection across the operating and fault-current range of PV strings and arrays.
Standard 10 × 65 mm Format
All current versions use the same compact 10 × 65 mm cylindrical fuse format for compatibility with correctly rated PV fuse holders.
Replaceable Cartridge Design
The cylindrical fuse link can be replaced independently of the fuse holder after the DC circuit has been safely isolated.
Wide PV Selection Range
Low-, medium- and higher-current options allow one fuse platform to serve different module technologies, string layouts and photovoltaic protection requirements.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 1500V DC |
| Rated Current | 1 - 35A |
| Utilization Category | gPV |
| Application | Photovoltaic String / Array Protection |
| Voltage Type | DC |
| Fuse Type | Cylindrical Fuse Link |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Fuse Size | 10 × 65 mm |
| Nominal Diameter | 10 mm |
| Nominal Length | 65 mm |
| Construction | Cylindrical Cartridge |
| Replaceable | Yes |
| Compatible Holder | 10 × 65 mm PV Fuse Holder |
Construction
| Parameter | Value |
|---|---|
| Fuse Body | Ceramic Cylindrical Body |
| End Contacts | Metal Ferrules |
| Product Format | Replaceable Cartridge Fuse Link |
Selection
Choose the Correct UH-DG-FU03 Fuse Rating
| SKU | Rated Current | Voltage | Size | Category |
|---|---|---|---|---|
| UH-DG-FU03-1A | 1A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-2A | 2A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-3A | 3A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-4A | 4A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-5A | 5A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-6A | 6A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-8A | 8A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-10A | 10A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-12A | 12A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-15A | 15A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-16A | 16A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-20A | 20A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-25A | 25A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-30A | 30A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-32A | 32A | 1500V DC | 10×65 mm | gPV |
| UH-DG-FU03-35A | 35A | 1500V DC | 10×65 mm | gPV |
Applications
Where This Product Is Used
PV Combiner Boxes
Connector assemblies support DC cable connections between PV strings, combiner equipment and inverter inputs.
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-DG-FU03 is intended for 1500V photovoltaic string and array overcurrent protection in PV combiner boxes, string protection panels, inverter DC input circuits and related solar distribution equipment. The required current rating should be selected according to module short-circuit current, maximum series fuse rating, string configuration and complete circuit-protection design.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.
1500V DC PV Fuse Holder for 10 × 65 mm Fuse – UH-DG-FH03
UH-DG-FH03 is a 1500V DC photovoltaic fuse holder designed for 10 × 65 mm gPV fuse links. Rated at 35A, the single-pole holder uses a removable fuse carrier and DIN-rail mounting for integration into PV combiner boxes, string protection panels and other high-voltage DC protection assemblies.
View ProductImportant Notes
Select the fuse rating according to the PV circuit design and never replace the fuse while the DC circuit is under load.
FAQ
Frequently Asked Questions
What current ratings are available for UH-DG-FU03?
UH-DG-FU03 is available in 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A and 35A ratings.
What fuse holder should be used?
UH-DG-FU03 is designed for compatible 10 × 65 mm photovoltaic fuse holders. The matching UHCCY product is UH-DG-FH03 – 1500V DC 35A PV Fuse Holder.
Should I always use the highest 35A fuse with a 35A holder?
No. The 35A value is the maximum holder rating. The fuse-link current must be selected according to the PV module maximum series fuse rating, normal string current and required overcurrent protection.
What does gPV mean?
gPV identifies a photovoltaic fuse-link operating category intended for PV string and array protection.
