Aerosol Fire Extinguishing Device
Aerosol Fire Extinguishing Device for Electrical Cabinets – UH-ES-AFD01
Model UH-ES-AFD01

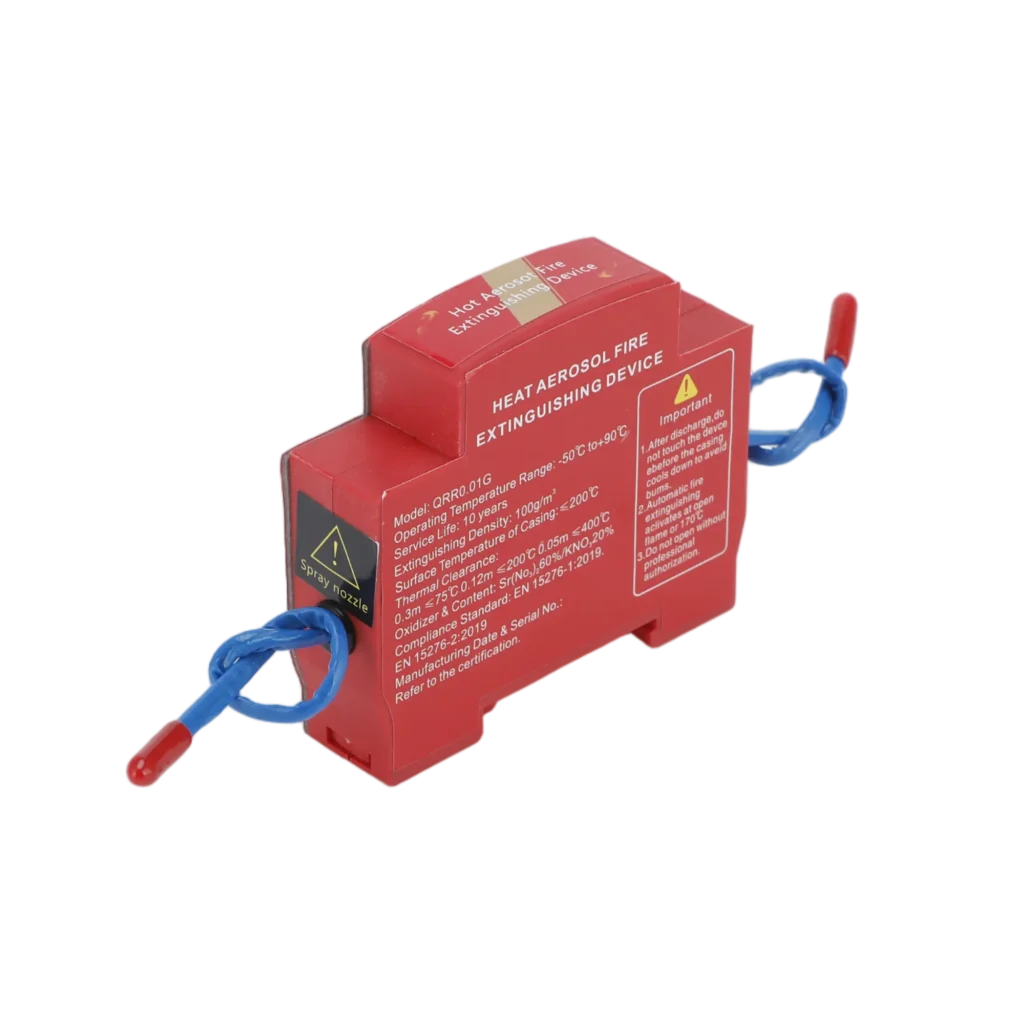

UH-ES-AFD01 is a compact, heat-activated aerosol fire extinguishing device designed for supplemental fire suppression inside small electrical cabinets, control panels, and equipment enclosures. An EN 15276-1:2019 test report for the underlying product model is available for technical review.
- Heat-Activated Operation
- Compact Design for Small Enclosures
- Electrical Cabinet Fire Suppression
Model
UH-ES-AFD01
Service Life
10 Years
Intended Protection Area
Small Enclosed Electrical Spaces
The UH-ES-AFD01 is intended for supplemental fire suppression in suitable small electrical enclosures. Its suitability depends on actual installation conditions, protected volume and project-specific fire hazards. It…
Overview
Product Overview
The UH-ES-AFD01 is a compact aerosol fire extinguishing device intended for supplemental fire suppression in small, enclosed electrical equipment spaces.
Its heat-activated design makes it an option for applications such as electrical distribution boxes, control cabinets, and solar combiner boxes, subject to enclosure suitability and installation requirements.
Before installation, the enclosure volume, internal obstructions, ventilation openings, ambient conditions, and applicable fire-protection requirements should be evaluated.
Features
Key Product Features
Heat-Activated Operation
Compact Design for Small Enclosures
Electrical Cabinet Fire Suppression
EN 15276-1:2019 Test Report Available
Heat-Activated Fire Suppression
The UH-ES-AFD01 uses a thermal activation mechanism to initiate aerosol discharge when the specified activation conditions are reached. Its automatic operation is intended for localized protection in suitable enclosed electrical equipment spaces.
Compact Enclosure Installation
The compact design allows the device to be considered for small electrical cabinets and equipment enclosures where installation space is limited. Mounting position, available clearance and internal obstructions must be evaluated before installation.
Condensed Aerosol Technology
The device uses a solid aerosol-forming compound to generate a fire-suppressing aerosol upon activation. The non-pressurized generator design provides an alternative to conventional stored-pressure extinguishing equipment for appropriately evaluated applications.
Electrical Equipment Applications
The UH-ES-AFD01 is intended for supplemental fire suppression in suitable distribution cabinets, control panels and equipment compartments. Its use should be evaluated according to the enclosure construction, fire hazards and applicable project requirements.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
| Parameter | Value |
|---|---|
| Model | UH-ES-AFD01 |
| Product Type | Aerosol Fire Extinguishing Device |
| Activation Method | Automatic Thermal Activation |
| Activation Condition | Open Flame or Approx. 170°C |
| Service Life | 10 Years |
| Intended Protection Area | Small Enclosed Electrical Spaces |
| Discharge Outlet | Side Spray Nozzle |
| Parameter | Value |
|---|---|
| Oxidizer Content | Sr(NO₃)₂ 60% ±5% |
| Additional Oxidizer Content | KNO₃ 20% ±2% |
| Standard | EN 15276-1:2019 Test Report |
| Production Identification | According to Production Batch |
| Parameter | Value |
|---|---|
| Overall Width | 79.5 mm |
| Main Body Width | 45 mm |
| Overall Height | 50 mm |
| Upper Section Height | 17.5 mm |
| Base Width | 76 mm |
| Bottom Opening Width | 35 mm |
| Side Bottom Section Width | 19 mm Each |
Selection
Selection Guide
| Model | Value |
|---|---|
| Enclosure Volume | Review the manufacturer-marked protection limit and verify suitability for the actual enclosure. |
| Internal Layout | Check partitions, cable ducts, busbars and other obstructions that may affect aerosol distribution. |
| Installation Clearance | Confirm sufficient mounting and discharge clearance. |
| Environmental Conditions | Verify the approved operating conditions for the supplied production version. |
| Fire Protection Requirements | Confirm whether the product is acceptable under the applicable project and local regulations. |
Applications
Where This Product Is Used
Residential Electrical
Protection, switching and backup-power components for residential distribution boards and low-voltage electrical systems.

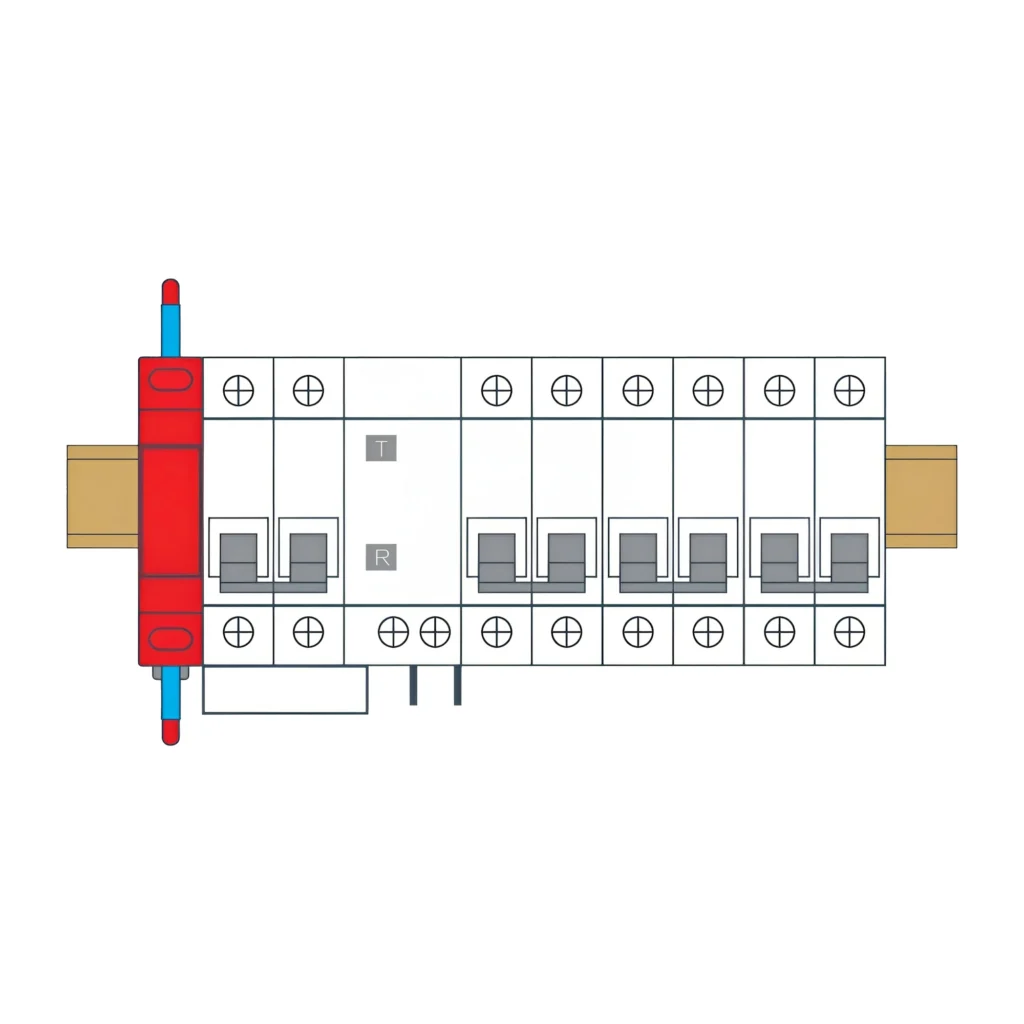

Installation
Installation Guidance
1. Confirm that the protected enclosure and intended application are suitable for the device.
2. Ensure electrical equipment is safely isolated before installation work.
3. Select a mounting position according to the manufacturer's installation instructions.
4. Keep the aerosol discharge path clear of obstructing components.
5. Verify that the device and its activation components will not interfere with normal equipment operation.
6. Check the installation against the approved mounting instructions before the equipment is placed into service.
**Important:** Installation must follow the instructions supplied with the production unit. Do not dismantle, modify, heat or deliberately activate the device during installation.
Important Notes
The UH-ES-AFD01 is intended for supplemental fire suppression in suitable small electrical enclosures. Its suitability depends on actual installation conditions, protected volume and project-specific fire hazards.
It should not be considered a direct replacement for required electrical protective devices, fire detection systems or building-level fire protection.
Use in battery thermal runaway applications, occupied spaces or other specialized environments requires appropriate application-specific validation. Product documentation and destination-market requirements must be reviewed before ordering.
FAQ
Frequently Asked Questions
What is an aerosol fire extinguishing device?
An aerosol fire extinguishing device uses an aerosol-forming compound to generate a fire-suppressing aerosol upon activation. The UH-ES-AFD01 is intended for suitable small electrical enclosures.
Does the UH-ES-AFD01 require external electrical power to activate?
The product is described as heat-activated. The activation configuration and installation requirements should be verified against the documentation supplied with the production unit.
Where can this product be installed?
It can be installed inside suitable enclosed spaces such as electrical cabinets, control boxes, communication cabinets, combiner boxes, inverter enclosures, and similar equipment compartments.
Can this product be used in large spaces?
This product is intended for small enclosed spaces. For larger cabinets, multiple compartments, or open areas, the suitability of one device must be evaluated according to the enclosure volume and fire-protection design.
Can it replace a room-level fire protection system?
No. The device is intended for localized enclosure protection. It should not automatically be considered a replacement for building-level fire alarms, extinguishers, or other required fire-protection systems.
Is an EN 15276-1:2019 test report available?
Yes. A third-party test report for the corresponding AFED product model is available upon request. Applicability to the intended project and destination market should be confirmed before ordering.
