UH-PC-WD01 is intended for framed photovoltaic modules where rainwater and dirt tend to collect along the lower frame edge. Typical applications include residential rooftop PV, commercial arrays, ground-mounted solar systems and other installations where module orientation and frame geometry can allow residual water to remain after rainfall or cleaning.
PV Accessories

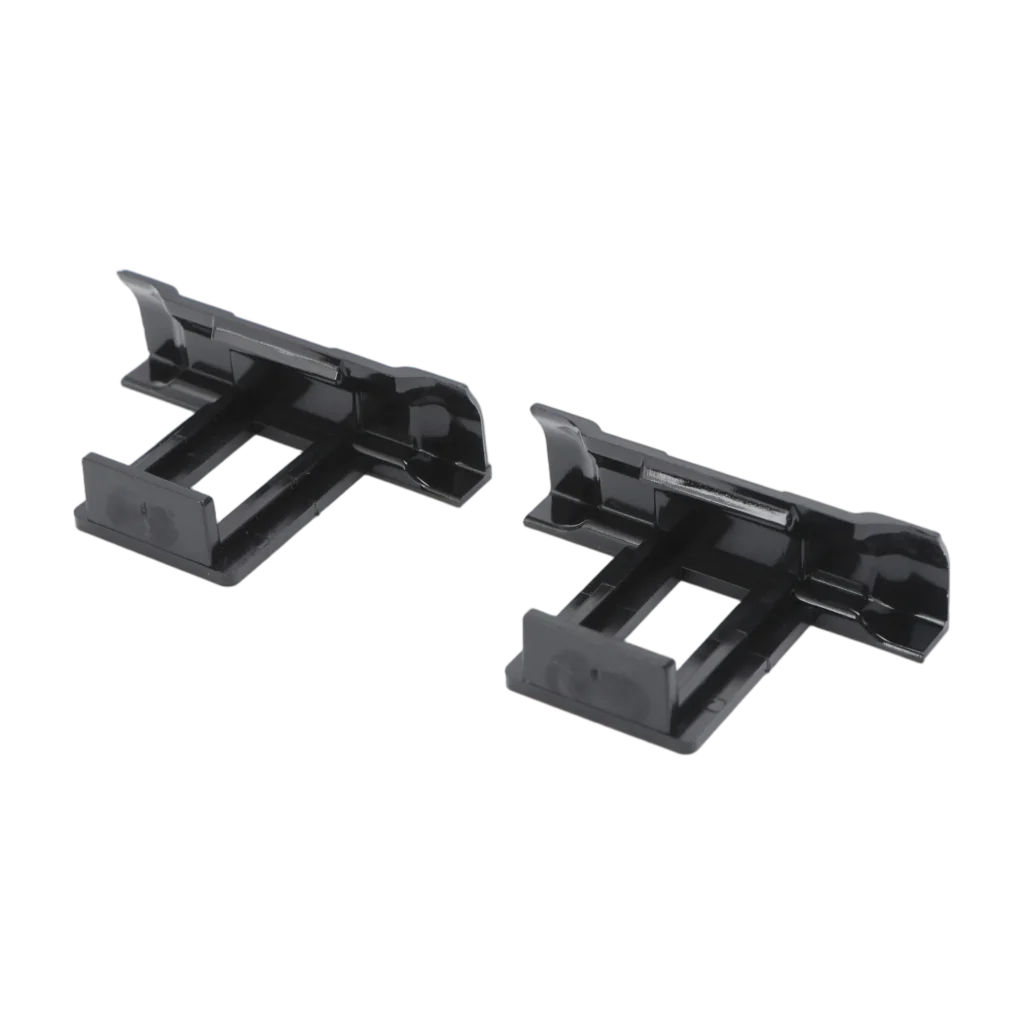

Solar Panel Water Drain Clip for 30–45 mm PV Frames – UH-PC-WD01
Model UH-PC-WD01
UH-PC-WD01 is a clip-on solar panel water drain accessory designed for framed photovoltaic modules. Available for 30, 33, 35, 40 and 45 mm frame heights, it helps guide rainwater away from the lower module edge and reduce persistent water and dirt accumulation along the frame.
- 30–45 mm Options
- Tool-Free Clip-On
- Improved Water Drainage
Frame Size Options
30 / 33 / 35 / 40 / 45 mm
Installation Method
Clip-On
Drilling Required
No
Overview
Product Overview
UH-PC-WD01 is a compact drainage clip installed on the lower edge of a framed photovoltaic module to help guide accumulated rainwater away from the glass and frame boundary. By providing a drainage path at the module edge, the clip can help reduce persistent water, dust and mud buildup in areas where runoff would otherwise remain trapped by the frame.
Five frame-specific versions are available for 30, 33, 35, 40 and 45 mm PV module frames. The clip-on construction requires no drilling or electrical connection, making it suitable for both new PV installations and retrofit maintenance applications.
Features
Key Product Features
30–45 mm Options
Tool-Free Clip-On
Improved Water Drainage
Five Frame Sizes
UH-PC-WD01 is available for 30, 33, 35, 40 and 45 mm framed photovoltaic modules.
Clip-On Installation
The drainage accessory snaps onto the module frame without drilling, screws or modification of the photovoltaic module.
Edge Water Drainage
The clip creates a drainage path at the lower module edge to help direct retained rainwater away from the glass-frame boundary.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Product Configuration
| Parameter | Value |
|---|---|
| Product Type | Solar Panel Water Drain Clip |
| Compatible Module Type | Framed PV Module |
| Frame Size Options | 30 / 33 / 35 / 40 / 45 mm |
| Installation Method | Clip-On |
| Drilling Required | No |
| Electrical Connection | None |
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
System Components
Compatible Accessories
Products selected here are intended to be used together with this product.

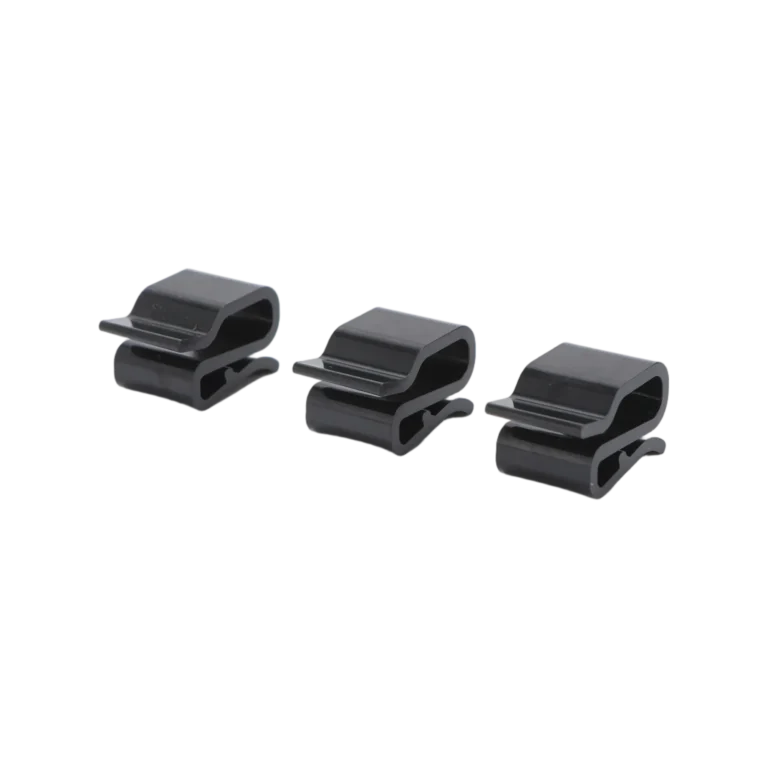

Solar Panel Cable Clip for PV Cable Management – UH-PC-CC01
UH-PC-CC01 solar panel cable clips provide a simple way to route and secure PV cables along photovoltaic module frames. Multiple clip configurations are available for different cable-management and installation requirements.
