Select the cable clip according to cable quantity, cable outside diameter and photovoltaic module frame-edge thickness. Contact UHCCY with your cable and module-frame specifications for configuration confirmation. IEC 62548-1 – Photovoltaic array design requirements
PV Accessories

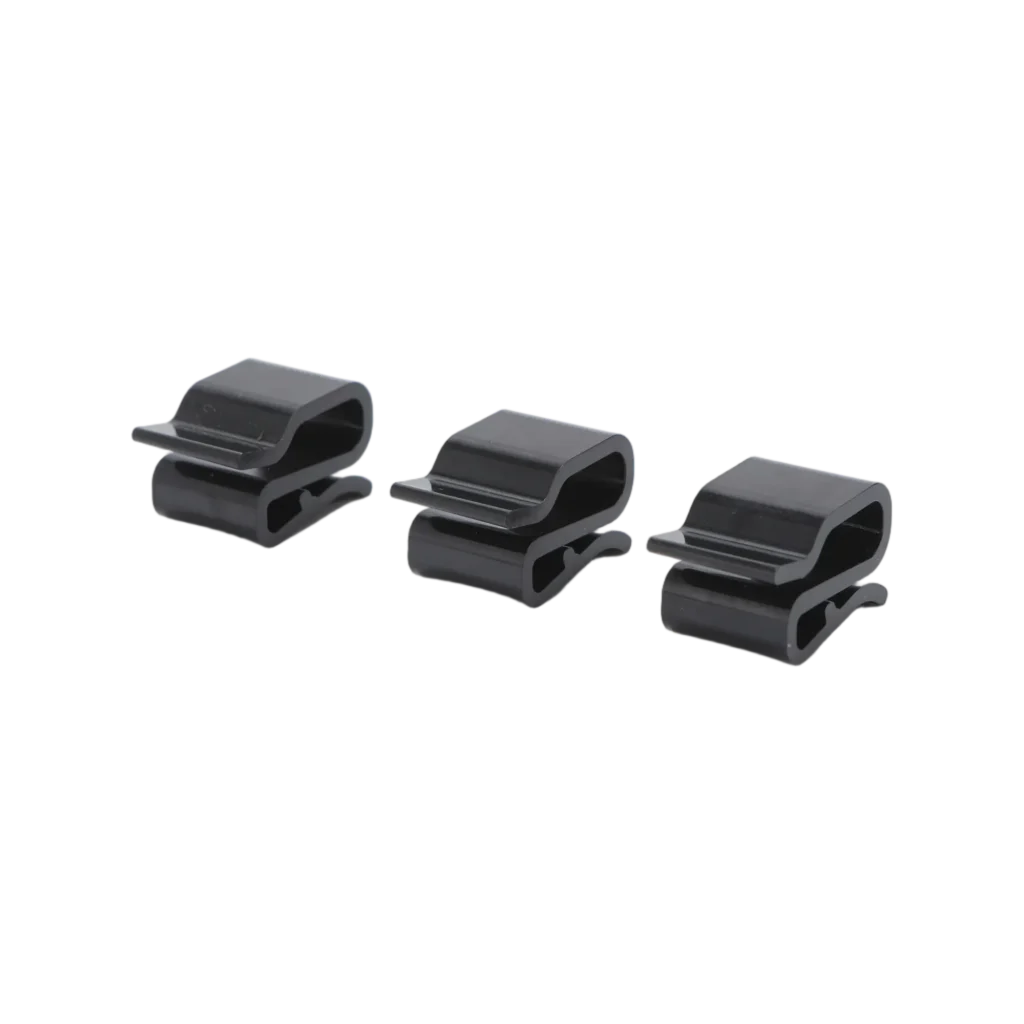

Solar Panel Cable Clip for PV Cable Management – UH-PC-CC01
Model UH-PC-CC01
UH-PC-CC01 solar panel cable clips provide a simple way to route and secure PV cables along photovoltaic module frames. Multiple clip configurations are available for different cable-management and installation requirements.
- PV Cable Management
- Multiple Clip Options
- Tool-Free Installation
Installation
Module Frame Edge
Configurations
Multiple Options
Application
Photovoltaic Modules
Overview
Product Overview
UH-PC-CC01 is a compact PV cable management accessory designed to secure solar cables to photovoltaic module frames and keep wiring organized beneath the array. Different clip configurations can be supplied according to cable quantity, cable size and module-frame requirements.
Features
Key Product Features
PV Cable Management
Multiple Clip Options
Tool-Free Installation
Organized PV Cable Routing
Keeps photovoltaic cables positioned along the module frame instead of hanging freely beneath the panel.
Multiple Clip Configurations
Different clip geometries can be selected according to cable quantity, cable dimensions and mounting requirements.
Simple Frame Installation
Designed for quick attachment to compatible solar module frame edges without complex installation hardware.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
| Parameter | Specification |
|---|---|
| Model | UH-PC-CC01 |
| Product Type | Solar Panel Cable Clip |
| Installation | Module Frame Edge |
| Function | PV Cable Routing & Retention |
| Configurations | Multiple Options |
| Application | Photovoltaic Modules |
Selection
Selection Guide
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
For PV cable routing and cable management on framed photovoltaic modules in rooftop, commercial and utility-scale solar installations.
FAQ
Frequently Asked Questions
What is a solar panel cable clip used for?
A solar panel cable clip secures and routes PV cables along the photovoltaic module frame, helping keep DC wiring organized beneath the solar array.
How do I choose the correct PV cable clip?
Check the number and outside diameter of the cables together with the module-frame edge thickness and required cable-routing direction.
Can the cable clip be used with 4 mm² and 6 mm² solar cable?
These conductor sizes are commonly used with PV cable clips, but compatibility depends on the finished cable outside diameter and the selected clip geometry. Confirm the cable dimensions before ordering.
Explore More

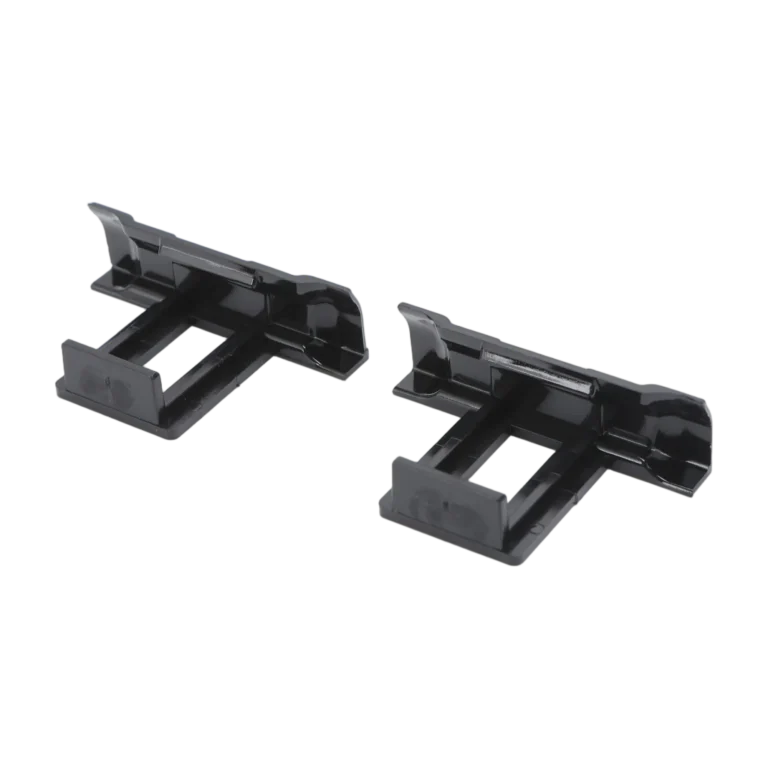

Related Products
Other recently published products from the same category.
Need More Information About This Product?
Contact UHCCY for technical details, product selection, samples, pricing, and OEM/ODM requirements.
