Solar Cable
Solar Connector to 2-Pin DC Adapter Cable, 12 AWG – UH-PC-EC02
Model UH-PC-EC02

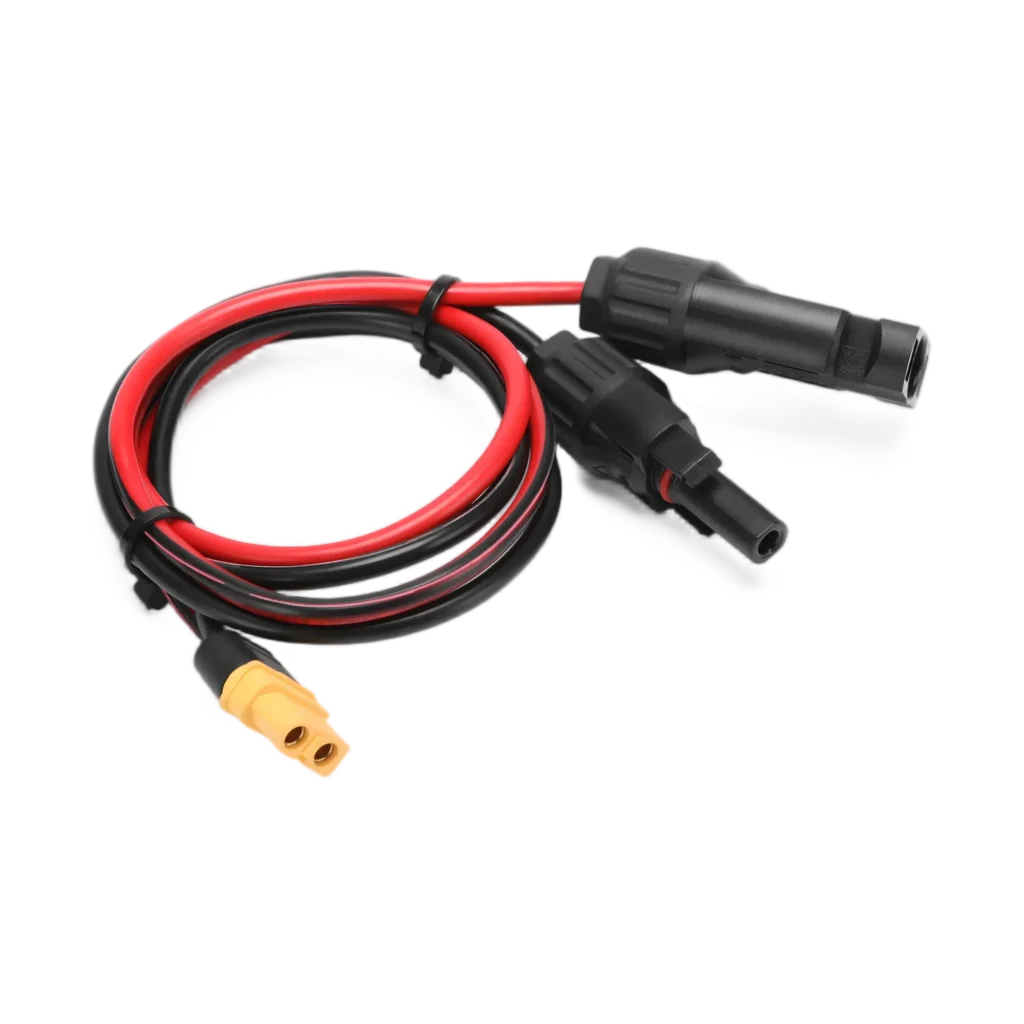

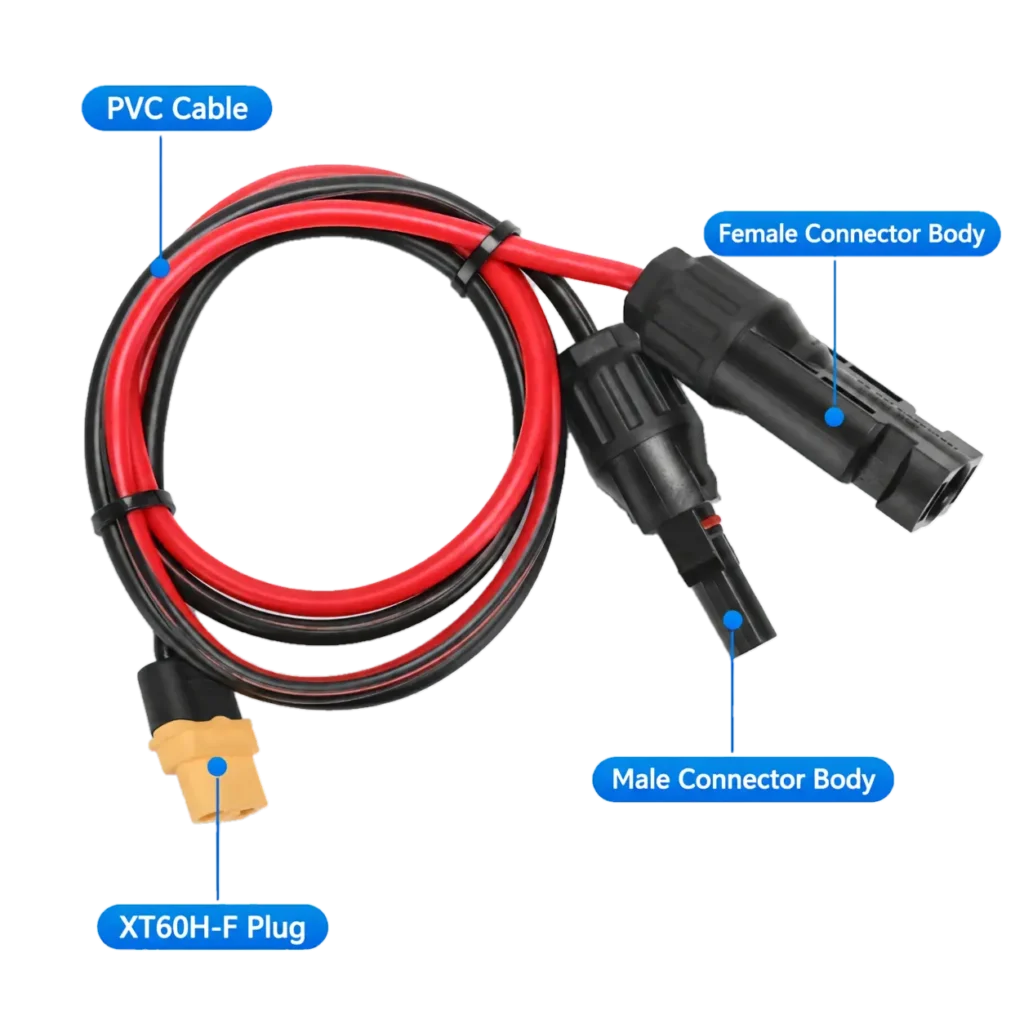

UH-PC-EC02 is a solar connector adapter cable designed to connect a photovoltaic DC output to equipment using a compatible 2-pin high-current DC interface. The standard assembly uses 12 AWG red and black PVC-insulated conductors with a 0.6 m cable length and locking PV connector interfaces for portable solar and DC power applications.
- 12 AWG Cable
- 0.6 m Standard Length
- Keyed 2-Pin Interface
Standard Length
0.6 m
Assembly Rated Voltage
500V DC max.
Recommended Continuous Current
30A
Equipment Side
Keyed 2-Pin DC Connector
Recommended Wire
12 AWG
Cable Insulation
PVC
Overview
Product Overview
UH-PC-EC02 provides a convenient interface between photovoltaic wiring and equipment using a 2-pin high-current DC power connector. The standard cable assembly combines locking PV connectors with 12 AWG red/black conductors and a 0.6 m cable length, making it suitable for portable solar power systems, DC charging equipment and other compatible low-voltage power applications.
The PV connector interfaces use locking housings and sealing elements for outdoor photovoltaic connections, while the equipment-side connector uses a keyed 2-pin design to help maintain correct polarity. Because the electrical and environmental ratings of the two connector systems differ, system design must follow the lowest applicable rating of the complete cable assembly.
Features
Key Product Features
12 AWG Cable
0.6 m Standard Length
Keyed 2-Pin Interface
PV-to-DC Equipment Interface
The adapter assembly provides a direct connection between photovoltaic connector interfaces and equipment using a compatible keyed 2-pin DC power connection.
12 AWG Conductors
Red and black 12 AWG conductors provide clearly identified positive and negative DC paths within the adapter cable assembly.
Locking PV Connector Side
The photovoltaic connector interfaces use self-locking housings to help maintain a secure connection after complete mating.
Keyed 2-Pin Equipment Connector
The equipment-side connector uses a polarized 2-pin geometry to reduce the risk of reverse insertion with the corresponding mating interface.
Standard 0.6 m Cable
The standard assembly uses an approximately 0.6 m cable length, with other cable lengths available as project configurations.
PVC-Insulated Cable
PVC-insulated conductors provide flexible cable routing for portable solar and DC power applications.
Technical Data
Technical Specifications
Review the complete technical parameters for product selection and project verification.
Cable Characteristics
| Parameter | Value |
|---|---|
| Cable Size | 12 AWG |
| Conductors | Red / Black |
| Insulation | PVC |
| Standard Length | 0.6 m |
| Cable Type | Supplier states UL1015-type PVC wire |
Electrical Characteristics
| Parameter | Value |
|---|---|
| Assembly Rated Voltage | 500V DC max. |
| Recommended Continuous Current | 30A |
| Maximum Connector Current | 35A |
| Polarity | Red Positive / Black Negative |
| Circuit Type | 2-Conductor DC |
Connector Characteristics
| Parameter | Value |
|---|---|
| PV Side | Locking PV Connector Pair |
| Equipment Side | Keyed 2-Pin DC Connector |
| Equipment Connector | XT60H-F type / compatible configuration |
| Recommended Wire | 12 AWG |
| Equipment-Side Protection | IP40 class based on connector platform |
| PV-Side Protection | IP68 claimed for correctly mated PV interface |
Materials
| Parameter | Value |
|---|---|
| PV Connector Housing | PPO, supplier stated |
| PV Contact Material | Copper alloy / tin-plated, supplier stated |
| Equipment Connector Contact | Gold-plated brass |
| Equipment Connector Housing | PA |
| Cable Insulation | PVC |
Selection
Select the Correct UH-PC-EC02 Configuration
| Configuration | Cable | Length | PV Side | Equipment Side |
|---|---|---|---|---|
| UH-PC-EC02-06M-12AWG | 12 AWG | 0.6 m | Locking PV Connector Pair | Keyed 2-Pin DC |
| Custom Length | 12 AWG | Project Specific | Same | Same |
Mechanical Data
Dimensions
The standard UH-PC-EC02 cable length is approximately 0.6 m. Connector dimensions depend on the selected equipment-side interface and should be confirmed from the corresponding connector drawing when enclosure clearance or mating geometry is critical.
Applications
Where This Product Is Used
Solar PV Systems
Protection, connectivity and distribution components for photovoltaic arrays, string circuits and related solar DC systems.
UH-PC-EC02 is intended for connecting photovoltaic outputs to compatible portable power stations, DC power equipment, battery charging interfaces and temporary or mobile solar power systems. It is particularly useful where the PV source and connected equipment use different connector formats and a pre-assembled polarity-defined adapter cable is preferred.
FAQ
Frequently Asked Questions
What is UH-PC-EC02 used for?
UH-PC-EC02 is an adapter cable for connecting a photovoltaic output to compatible DC equipment using a keyed 2-pin power connector, such as certain portable power and solar charging devices.
Is this cable rated IP68?
No. The PV connector interface may provide IP68 sealing when correctly mated, but the equipment-side connector uses a lower environmental protection class. The complete adapter cable should therefore not be specified as an IP68 assembly.
Is the equipment-side connector an XT60?
The supplied configuration shown in the source material uses an XT60H-F-type 2-pin connector. Because XT60 is a third-party connector designation, UHCCY identifies the product primarily as a 2-pin DC adapter cable and uses third-party names only where necessary to describe component compatibility.
